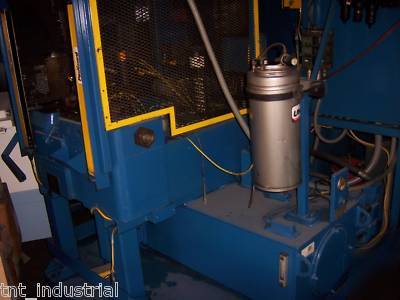

Manchester m 71-h-3 hydraulic tube endforming machine

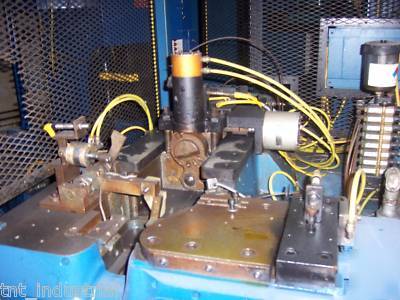

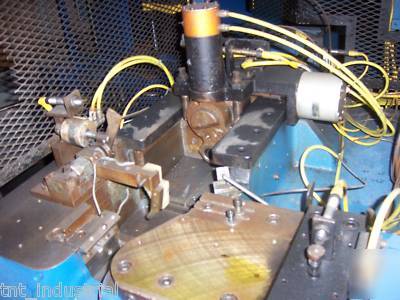

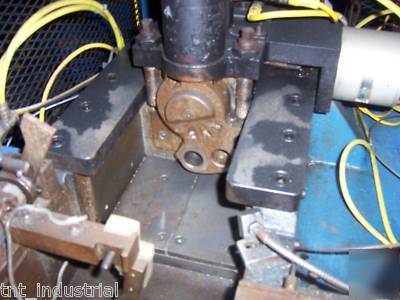

The Manchester model M71-H-3 is a hydraulically operated machine with a
three position tool holder that is easily programmed to make one, two
or three strokes. A simple adjustment determines the length of the stroke.
* Cycle Time: 2.2 to 4.7 seconds
* Maximum Jaw Opening: 1.75"
* Ram Cylinder: 3- " bore x 6" stroke
* Ram Force: 8 tons (maximum)
* Clamp Cylinder: 2 " bore x 2 " stroke
* Clamp Force: 17 tons (maximum)

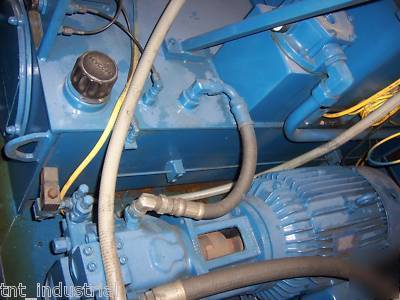

* Hydraulic Unit: Vickers 15HP 22 GPM
* 12 Month Warranty on Machines
* 1 to 3 Three Hit Capability
* Larger Bore & Unload Systems
* Custom Cycle Start Initiators
