Cincinnati series 107-122 plain powermatic simplex mill

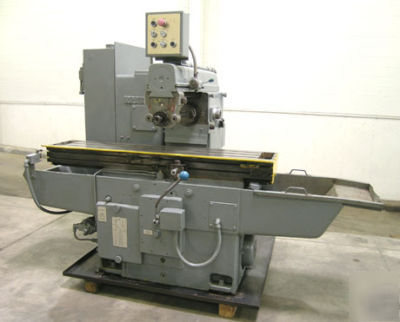

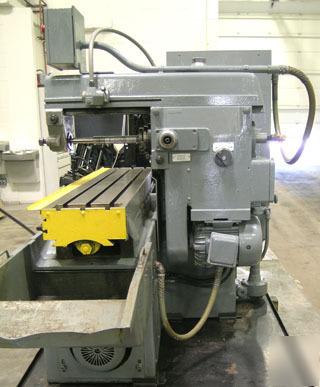

(1) USED - CINCINNATI MILACRON MODEL NO. 107-122 PLAIN POWERMATIC
SIMPLEX PRODUCTION MILLING MACHINE*
Table Working Surface 12" x 54"
Vertical Adjustment of Spindle Carrier (Hand) 11"
Center of Table to Spindle Carrier 10"
Face of Spindle Carrier to Inside of Outer Support 20-1/2"
Center of Table to Face of Spindle - Maximum 9"
Top of Table to Centerline of Spindle - Maximum 12"
Distance from Floor to Top of Table 32"
Underside of Overarm to Centerline of Spindle 5"
Spindle Speeds (16) 40 - 1600 RPM
Table Feed Range (16) 1/2 - 60 IPM
Power Rapid Traverse Rate 300 IPM

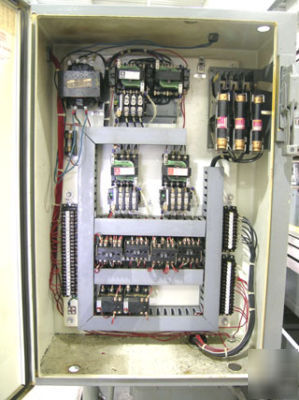

7-1/2 HP 3/60/230/460 Spindle Drive Motor & Controls
3 HP 3/60/230/460 Hydraulic Motor
1/4 HP 3/60/230/460 Coolant Pump Motor

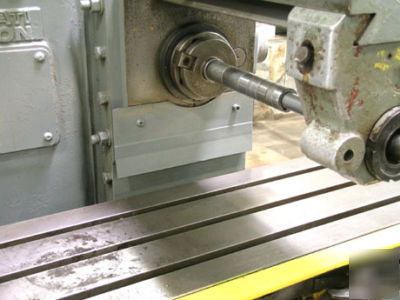

Arbor with Miscellaneous Spacers
Miscellaneous Speed Change Gears
