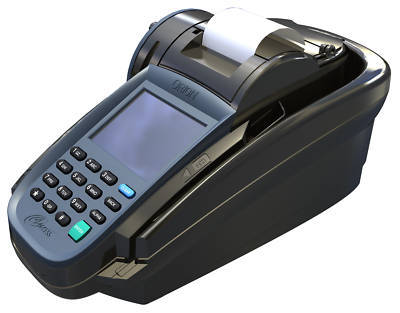

4ACCESS orion all-in-one credit card terminal
Stand-alone, all-in-one check reader, imager & card solution
Multiple Application Environments
Duo-Read simultaneous MICR and OCR check recognition for check read rates of better than 99.9%
Real-time image quality monitoring and optimization for high quality 300dpi grayscale and B/W images
Secure confirmed image upload via dial or Ethernet (IP)
Programmable ink jet cancellation printer
Graphics capable fast thermal printer
Ethernet (IP) and analog phone ports
Robust multi-app software platform
Up to 20 independent merchant configurations per terminal
Microprocessor Powerful 32-bit, 400 MHz Intel processor
Memory, Nonvolatile 256MB flash: standard
Imaging Capability 300dpi with two storage formats:
- Black & White: CCITT Group IV TIFF encapsulated. Typical image size is 12k
- Grayscale: JPEG. Typical image size is 37k
Image Storage Greater than 6,000 images in internal nonvolatile memory
Check Transport Speed 15 inches per second
Display Large high resolution graphical QVGA 320x240
Keypad 16 key industry standard layout
Character Recognition Unified magnetic and optical character recognition
Magnetic Card Reader 3-track: Standard
Integrated Receipt Printer Industry standard paper roll available at office supply stores
Integrated Check Optional fixed head ink jet printer
Cancellation Printer Programmable to print void, cancelled or other text
Modem 56k v.90 for fast image uploads and software downloads
Communication Ports Two industry standard RS-232 ports
Two RJ-11 ports for phone line connection
Two USB ports for interfacing standard PC peripherals
Power Supply 15 VDC; 115 VAC transformer
Operating System Embedded Linux operating system
Security Linux based user role restricted access across applications and data
Software Open source development tools
Supports multiple, independently developed applications
Real-time image quality monitoring
Remote maintenance and component performance monitoring
Dial-up public Internet capability with encryption
Dimensions Height: 5.7 in, Width: 6.1 in, Depth: 12.7 in
Email us at ****@merchantserviceinnovations.com of call (***)-788-8344 for more information.
