12 gallon 316L jacketed stainless steel vessel

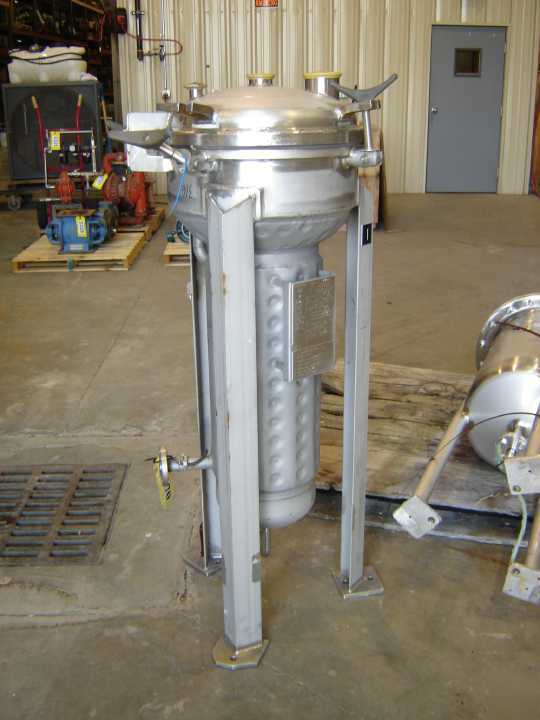

12 GALLON 316L JACKETED STAINLESS STEEL VESSEL
TANK CERTIFIED BY PRECISION STAINLESS INC, SPRINGFIELD, MO. MAXIMUM WORKING PRESSURE ATMOSPHERE PSIG AT 250 DEGREES F. MINIMUM DESIGN METAL TEMPERATURE 45 DEGREES F AT ATMOSPHERE PSI. MANUFACTURERS S/N-5540.1, BUILT IN 1992. SHELL THICKNESS .187", HEAD THICKNESS .250/180", HEAD DISH RADIUS 18/2:1". MAX WORKING PRESS 30 PSIG AT MAX TEMP OF 250 DEGREES F. MIN DESIGN METAL TEMPERATURE 45 DEGREES F AT 30 PSI. OUTER JACKET SHELL 16 GA OF 304L STAINLESS STEEL. MAIN TANK CONSTRUCTED OF RT-3, 316L STAINLESS STEEL. DRAWING #: 46048D, VESSEL VACUUM DESIGN 14.7 PSI. 12 GALLON CAPACITY, ESTIMATED EMPTY WEIGHT 240 Lbs. MANUFACTURED FOR E. I. . DUPONT, PROJECT NO. 7502/D482, ORDER NO. LPBC-90053W, EQUIPMENT NO. EN6100-9013-3, MATERIAL 316L SS.
