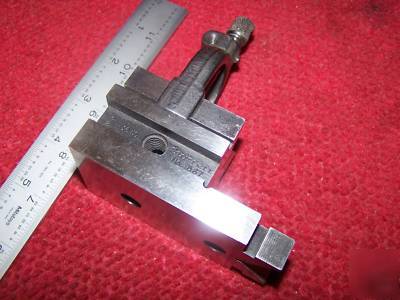

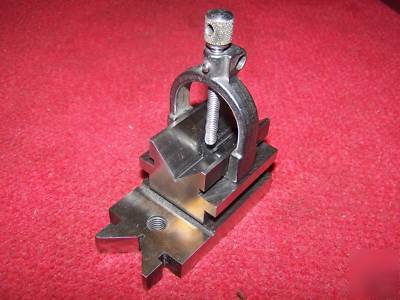

Starrett 567 v-block and clamp


Can be used on base, end, and flat on either side. As clamp is within outside width of block. Clamp is provided with an adjustable side screw with caps to support block and prevent tilting. Groove at stepped end at right angle to base and is handy for holding shouldered studs, round pins, etc. Hole clearance for drilling and removing dowel pins is provided. Block has 3/8"-16 tapped holes, two in the base and one at each side to attach angle iron. Angle iron holding block can then be attached to lathe faceplate or held by magnetic chuck. Block made of hardened steel. Sides are ground parallel to sides and base.
