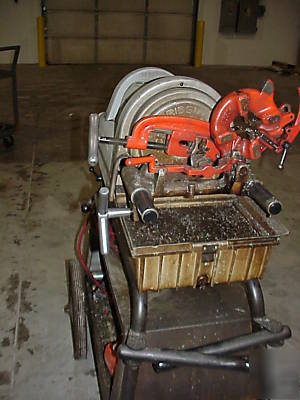

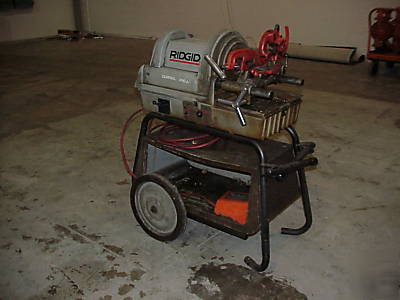

Ridgid - model 1822 - i pipe threader w/ rigid cart
815A Die Head Self-Opening R.H., 1/2 - 3/4 NPT (BSPT) Alloy Dies
1 - 2 NPT (BSPT) High Speed Dies, 1 Gallon Nu-Clear (Mineral) Oil
364 Wheel Cutter 1/8 - 2 (E-1032 Cutter Wheel)
344 Five Fluted Reamer 1/8 - 2
Capacity: Pipe 1/8 in - 2 in (3mm-50mm)
Capacity: Pipe 2 1/2 in - 4 in (62mm - 100mm) with No. 141 geared threader
Capacity: Bolt 1/4 in - 2 in (6mm-50mm)
The new RIDGID 1822-I features the CENTER-LOCK
Chuck which automatically grips and centers pipe or
bolt. A Two-speed transmission transfers a constant
45 RPM for pipe threading, and 16 RPM for bolt
threading or low voltage conditions. The 1822-I also
features a Self-Opening/Automatic Oiling Die Head,
single action No. 344 Reamer, easy aligned No. 364
Cutter, and a rack and pinion carriage with improved
Handwheel efficiency. A single phase induction motor
delivers 11/2 horsepower and quiet operation.
Lightweight non-metallic covers offer improved portability
which can be optimized with the addition of a No.
1406 Folding Wheel Stand. From standard pipe and
bolt threading to accessories for nipples, beveling, cut
grooving or No. 141 Geared Threader operation, the
RIDGID 1822-I combines productivity and versatility
for shop or field threading applications.
Threading Capacity: Pipe 1/8 through 2
Material Capability: Black, Galvanized, Stainless
Motor: Constant Speed Induction,
