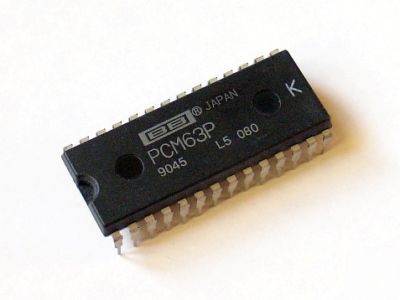

PCM63P-k PCM63P 20-bit monolithic audio dac
PCM63P-K Colinear 20-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER
The PCM63P is a precision 20-bit digital-to-analog converter with ultra-low distortion ( 96dB max with a full scale output; PCM63P-K). Incorporated into the PCM63P is a unique Colinear dual-DAC per channel architecture that eliminates unwanted glitches and other nonlinearities around bipolar zero. The PCM63P also features a very low noise (116dB max SNR; A-weighted method) and fast settling current output (200ns typ, 2mA step) which is capable of 16-times oversampling rates. Applications include very low distortion frequency synthesis and high-end consumer and professional digital audio applications.
NEAR-IDEAL LOW LEVEL OPERATION
(Without External Adjustment)
116dB SNR min (A-Weight Method)
INDUSTRY STD SERIAL INPUT FORMAT
