sorensen DLM60-10M130 600W 60V 10A programmable dc
Sorensen DLM60-10M130 600W 60V 10A Programmable DC power supply. Demo Unit, Used

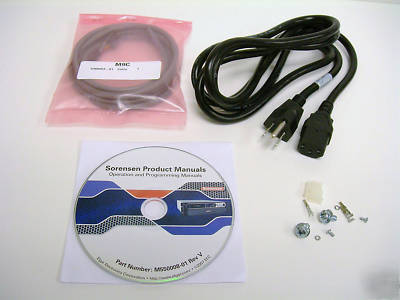

Price Consideration:You are saving $ 165.00 dollars form the list price. This unit comes with M9C (5360663-01) cable, Power cord, CD with Operation and Programming Manual, Certificate of Conformance (August 31st, 2007), Material Contests Declaration and other little accessories as shown in pictures.
* High Power Density: 600 watts in 1U (1.75 inches) high, half rack (8.5 inches) wide; no top or bottom clearance spacing required.
* Near Linear Ripple & Noise: Ripple as low as 2.5mV rms, noise as low as 15mV p-p.

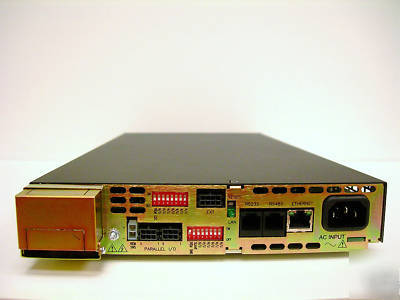

16 bit programming through LXI -compliant Ethernet LAN / RS-232C (M130
12-bit programming through IEEE-488.2 / RS-232C (Option M9G)
Standard analog programming 0-5V, 0-10V, or 0-5k .
isolated analog programming (option)
* Pushbutton Preview: Overvoltage protection, voltage and current preview buttons allow viewing these set points at any time with or without the output enabled.
* Active Down Programming: Standard internal circuitry to speed up response
time to down programming changes.
* Easy master/slave paralleling with active current sharing
IVI-com driver for M130 option
Labwindows CVI driver for M9G option
Labview driver for M9G option
The DLM 600W series of programmable power supplies is designed to provide continuously variable output voltage and current for a broad range of applications in a compact 1U (1.75 inches) high, half-rack (8.5 inch) wide chassis.
With the use of Zero Voltage Switching (ZVS) technology, these supplies are able to achieve exceptionally low, near-linear ripple and noise rivaling larger and more expensive linear power supplies. In addition, the high efficiency and fast load transient response assure that the DLM is ideal for even the most demanding applications.
The DLM 600W models are ideal for high density multiple output rackmount requirements or low profile benchtop applications. Output voltages from 0-5VDC to 0-300VDC and currents from 0-2A to 0- 75A are available.

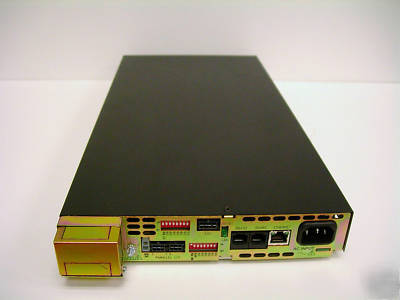

The cooling air intake is at the front and sides with exhaust at the rear and sides. Variable speed fans are controlled as a function of ambient air temperature and load, thus reducing acoustic noise and increasing fan life. This allows supplies to be stacked one directly on top of another without space in between, yielding maximum rackmount packing density and a wide operating temperature of 0-50 C. An optional rackmount kit is available to easily mount one or two units side-by-side.

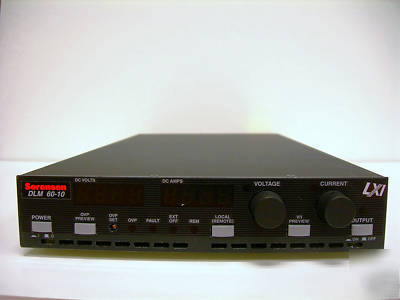

The front panel layout makes the DLM600W series easy to use. Voltage and current can be set from individual 10-turn potentiometer knobs. Control push buttons include power on, output on, local/remote, voltage/ current preview and overvoltage protection preview. Set-point or actual voltage/ current values can be viewed on two 3- digit LED displays. The DLM600 can also be controlled through IEEE488.2 GPIB (option) or LXI-compliant Ethernet (option).
Supplies can be connected in series or parallel. All models automatically accept any standard single phase input without manual set up.
