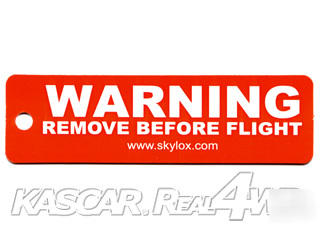

Skylox flag skytag warning remove before flight 20 pack
Item: Skylox, Aircraft Circuit Breaker Lockout Warning Flag
Qty: 1 pack of 20 Condition: New
Skylox is a unique product that will provide safety to your aircraft service crews used during ground maintenance procedures.
The circuit breaker safety lock is easy to use and is very durable, all at a very low price.
SKYLOX are also available in Yellow or Orange.
Warning, Danger and custom flags can be ordered for increased safety.
Skylox are designed for use by aircraft maintenance crews during ground service procedures and are NOT intended to be used in flight.
If you have any questions, please feel free to call us at (***)-422-0370 - Thank you for your business!
1. When positive lockout/deactivation of an electrical circuit breaker is required during
flight operations, use lockout ring (Figure 3A) part number: S 4933959 or lockout collar
(Figure 3B) part number: 12E2081 9 or 2S308 (NSN: 6110 00 492 9392).
2. Verify that circuit breakers that require lockout/deactivation are in the OFF (pulled)
Do not use any tools to install or remove lockout ring or collar as
damage may occur to the circuit breaker.
3. Using slight pressure, snap the lockout ring or collar onto the circuit breaker shaft.
Figure 3A. Circuit Breaker Lockout Ring
Figure 3B. Circuit Breaker Collar
ground operations ONLY, use the lockout ring or collar or the safety lock (Figure 3C). For
typical circuit breakers (3/8 head size) use part number: 296050002. For larger circuit
breaker (7/16 head size) use part number: 296050008.
3. When using the lockout ring or collar apply a slight pressure to snap the lockout
device onto the circuit breaker shaft. If using the safety lock, pinch the ends of the safety
lockout together and slide over the circuit breaker and release (Figure 3C). Safety lock
remains secure to circuit breaker (Figure 3D).
Figure 3C. Circuit Breaker Safety Lockout Installation
Figure 3D. Circuit Breaker Safety Lockout Installed
4. An optional sleeve part number: 296050009 may be used on the safety lock to prevent
accidental removal (Figure 3E). The sleeve is applied by sliding it over the previously
installed safety lock making sure the holes are in alignment. Secure the sleeve to the
safety lock with string/lacing tape (A A 52083 or A A 52084) through the hole.
If the optional safety lock clip and condition tag are used then the
string/lacing tape is not required.
Figure 3E. Circuit breaker safety lockout sleeve installation
5. A condition tag (optional) may be attached to any of the locking devices by drilling a
small hole (if not provided) and secure the tag with string/lacing tape (Figure 3F) or
safety lock retaining clip part number: 296050018 (Figure 3G).
Figure 3F. Circuit breaker safety lock installed with optional sleeve with warning tag using string/lacing
Figure 3G. Circuit breaker safety lock retaining clip
6. Safety lock kit (for ground use only) contains safety lock, sleeve, condition tags and
clips for typical applications (part number: 296050020 1). The replacement safety lock oring
is part number MS9068 111(NSN: 5331 00 965 0719).
