New 2010 gooseneck equipment trailer 35'+5' ew trailers
FREE TORGUE TUBE-PIERCED FRAME-NO CHARGE
New 2010 Gooseneck Heavy-Duty Equipment Trailer With Duals. This trailer conforms to all applicable US Federal Motor Vehicle standards in effect at date of manufacture. Trailers are issued with SAE seral number and MSO for you to obtain a title.
* 2-10,000 lb. Oil Bath Axles ( 5" O.D., .250 WALL) w/Electric Brakes on Both (SELF ADJUSTING), (12 1/4" X 3 3/8")
* Wheel Bolt Pattern 8 on 6 1/2"
* This Trailer is rated for 24,000 GVW
* Standard Brake-A-Way Controller

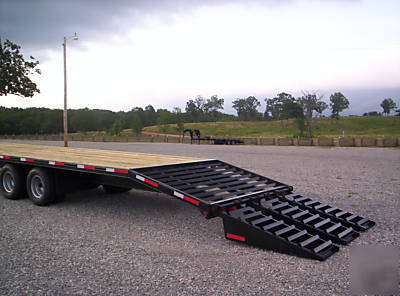

* 3-Spring Assisted Ramps-Lay Flush w/Deck when Folded-Plated
* 2 Heavy-Duty Front Jacks-12000 LBS. EACH
* Adjustable gooseneck coupler-14" of adjustment
* Chain and Boomer Box on Front-LOCKING LID
* 10 Ply 235 X 80 X 16" Heavy Duty Radial Tires-Load Range E
* Chrome Simulators ARE $300.00 EXTRA
* 12" x #19 High Tensile I-Beam on Frame-Bridged
* Neck risers are Extra tall
* Cross Members are 3" Channel 16" O.C. Standard
* Pressure Treated Southern Pine Deck Boards
* Deck screws are 5/16" grade 8 self tapping
* Stake Pockets and Rub Rails-3/8"x 2" Standard
* Rubber Mounted Sealed Lights.
* ALL NEW-NO USED MATERIALS OR PARTS
* There is no better trailer built. We use MIG welding by certified welders. All joints are cut on a metal cutting bandsaw where pratical.
* The best quality built gooseneck on the market.
* We use 1 coat rust inhibitor primer, 2 coats high gloss Industrial enamel paint.
* We custom build to order, you can choose your color of paint (basic colors) at no extra charge. Please allow 3 to 4 weeks for build time, since we custom build each trailer.
