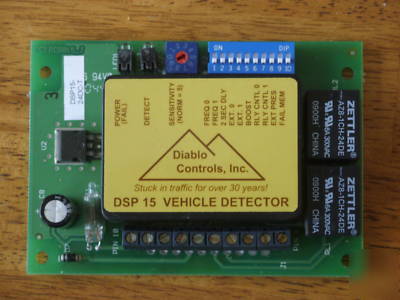

Diablo dsp-15 traffic loop detector
The DSP-15 vehicle detector has been specifically designed to handle all parking, drive-through and access control applications.
Working on virtually any size loop, the DSP-15 automatically tunes itself to the best operating frequency within the selected range. Environmental conditions are constantly compensated with the DSP-15 s HYPERTRACK software. The DSP-15 s inherent noise filtering algorithms allow it to work reliably in any electrical situation.
It can be used as either a safety loop or free exit loop detector. With the flexibility to be either fail safe or fail secure, it is the only parking detector you will ever need.
* Loop Size - Works on any in-ground inductive loop from 20 to 1000 mH.
* Fail Safe or Fail Secure Operation - Can be easily changed to either mode in the field.
* Indicators - Separate Power/Fail and Detect LEDs.
* Connector - Ten position terminal block or 10 pin male
* Sensitivity - Ten sensitivity settings.
* Frequency - Automatically tunes within one of four operating ranges.
* Outputs - Two separate relay outputs with features that are switch programmable as follows:
* Output B Switch selectable to one of the following four options:
1. True presence (no extension or delay)
2. Pulse on vehicle entering loop
3. Pulse on vehicle exiting loop
* Sensitivity Boost - Can be used in special applications to insure complete detection of high-bed vehicles.
* Hold Time - Normal or extended hold time is selectable.
* Loop Failure - If the loop fails, opens or shorts, the power indicator flashes. Output B can also indicate this condition if desired (see above). The option to "remember" an intermittent loop failure is also provided.
* Delay - Can be selected to ignore fast moving vehicles over the loop.
These units were removed from a working gate control system that was removed from service. These units sell new for over $190.00. Guaranteed not to be DOA.
