David white LT8-300P level transit with case no

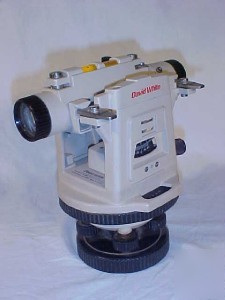

David White LT8300P Level Transit With Case
This level-transit is used. I seems to be in good working order. It is in excellent condition, it could use a little cleaning. The only items included in this austion are the unit and case . The case has some green paint on it and suffs, clasps work well.
* Field of View: 1' 9" @ 100' (1.7m & 100m)
* Fixed focus: From 4' to 7'
* Reticle: Cross lines, wire type, abjustable focus
* Field of view: 3.5" @ 5 feet
* Center stud: 1 5/8" shift adjustment for easy setup of optical plummet. LT8-300P includes adapter to allow use with 5/8 x 11 tripod.
* Graduation diameter: 4-5/8" (117mm)
* Numbers: Each 10 (0-90-0 )
* Vernier: Double direct to 5 min.
* Within 3/16" @ 150' (5mm @ 46mm)
* Numbers: Each 10 (45-0-45 )
* Vernier: Double direct to 5 min.
* Wide-stance ball bearings
* Double-walled polyethylene, safety orange
* Instrument Only: 9 lbs. 8 oz. (4.3kg)
See pictures below for additional detail.
I want our dealing to be smooth and simple. If an issue should arise, please let me know and we will work it out.
*** I am 100% COMMITTED to your satisfaction **
