Arm 9 samsung S3C2440 ARM9 board + 7" lcd touch screen

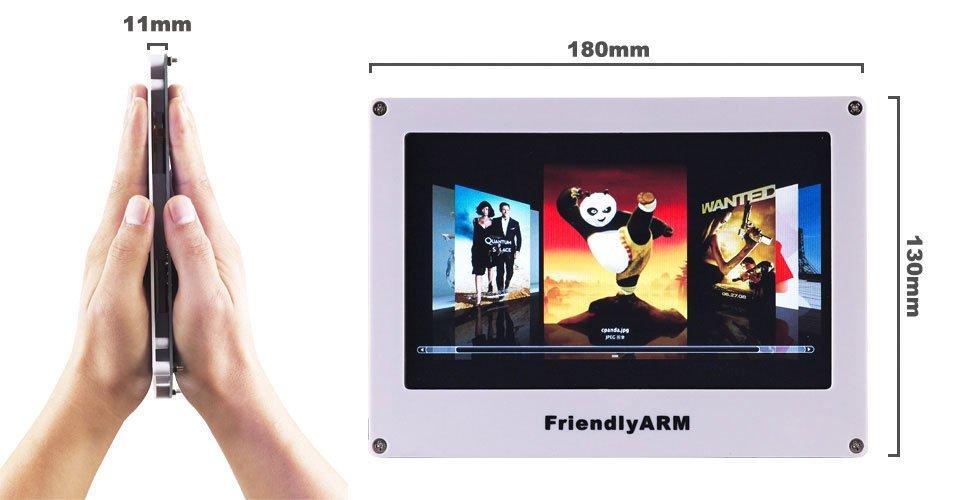

Samsung S3C2440 ARM9 Board + 7" TFT LCD Touch Screen
Samsung S3C2440A 400MHz, Max freq. 533Mhz
4 wire resistive touch screen interface
Up to 4096 color STN, 3.5 inches to12.1 inches, up to 1024x768 pixels
Up to 64K color TFT, 3.5 inches to 12.1 inches, up to1024x768 pixels
In box 256K color 800x480/7.0 inches TFT LCD screen, with touch screen
1 x 10/100M Ethernet RJ-45(DM9000)
3 x Serial Ports(1 RS232 with CTS and RTS)
1 x Stereo audio out, 1 Micro In
1 x POT can be used for A/D converter adjust
1 x Power In(5V), with switch and lamp
* 1 x S3C2440 board (Preload with Linux)
* 1 x Parallel port wiggler JTAG emulator(for H-JTAG)1 x DVD-ROM with product reference
* 1 x TFT LCD: 7.0" 800x480 (Innolux AT070TN83 V.1), with touch panel
(2) Windows Flash Programmer SJF2440
(3) Linux Nand Flash Programmer Jflash-2440(source code included)
(5) Bitmap to C Language transfer tool
(7) vivi source code(linux bootloader)
(8) LED test program(ADS1.20 project)
(9) 2440test program(ADS1.20 project), include :
key test, RTC test, ADC test, IIS Audio play(wav), IIS Audio record,
touch screen test, I2C test, Samsung 3.5"LCD, 640x480 TFT test
- arm-linux-gcc-4.3.2 with EABI
- linux-2.6.29 for S3C2440 kernel source code(include DM9000, LCD driver, Audio,
USB Camera,USB Mouse and Keyboard, U-Disk)
(14) Qtopia 2.2.0 source codes, web browser source codes
(16) Schematics(Protel99SE/PDF)
