18 ton whitney coper notcher & bender

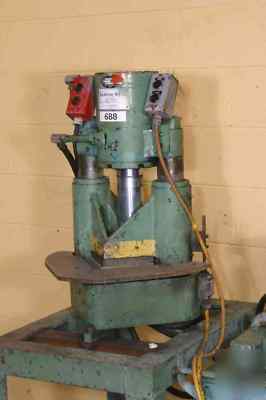

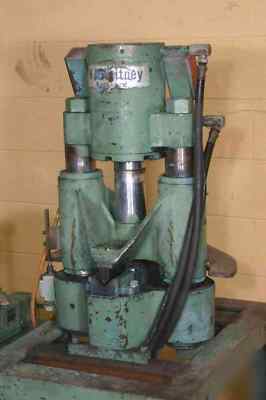

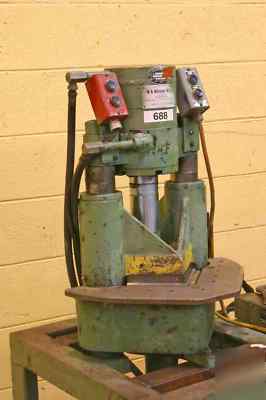

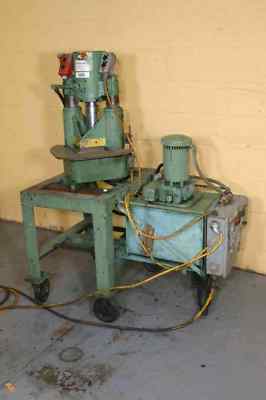

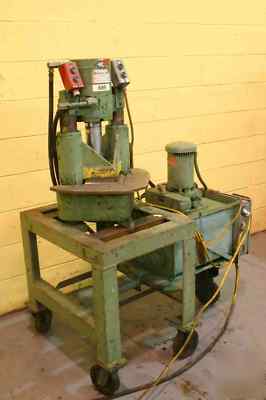

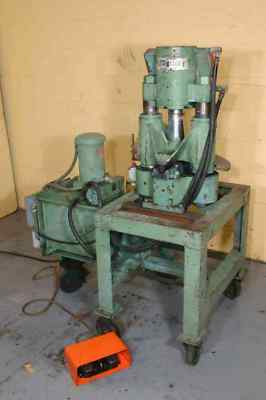

18 TON WHITNEY COPER NOTCHER & BENDER
SERIAL ........................ (***)-069-9697
MODEL ......................... 610-069
ONE SIDE COPER/NOTCHER ........ YES
ONE SIDE BENDING DIE .......... YES
NOTCH & BEND ANGLE IRON ....... 4" X 4" X 1/4"
COPE FLAT SHEETS .............. 5-1/2" X 5-1/2" X 1/4"
BEND FLAT STOCK ............... 4" X 1/4"
CAPACITY ...................... 18 TON
STROKE OF RAM ................. 1-3/8"
CYCLE TIME .................... 7 SPM
ELECTRIC FOOT TRIP ............ YES
MOUNTED ON CAST IRON WHEELS ... YES
HYDRAULIC MOTOR, HORSEPOWER ... 1-1/2
