Magntek 1/30 hp inducer motor with centrifigal switch

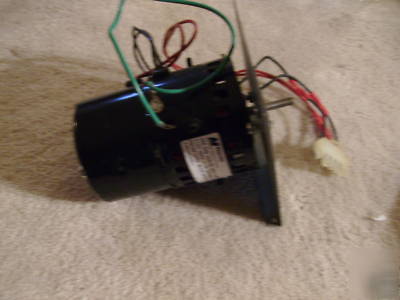

MAGNETEK 1/30 HP 115 VOLT INDUCER MOTOR WITH CENTRIFIGAL SWITCH. This motor is the type used on mobile home furnaces and package units. The RPM's are 3000, the rotation is clockwise looking at the shaft end of the motor, the shaft is 1/4" and it is 1 1/4" long. The motor diameter is 3 1/4". The motor and centrifigal switch together are 4 5/8" long. The switch is mounted on the rear of the motor. It has 2 mounting studs on the motor that are 3/4" long. The model # is JA1M744NV#, stock# 357, serial # 24G 65879R. The spec's are: 115 V, 60 HZ, 1.1 A, 3000RPM, 1/30HP, 1 PH, CONT.AO. It is thermally protected. The wire color code is : MOTOR BLACK, SWITCH RED. It has a steel mounting plate on the shaft end. I am a semi retired HVAC contractor who is selling off his remaining inventory.
