Hammond 2" od-2 dry type air tension polishing machine

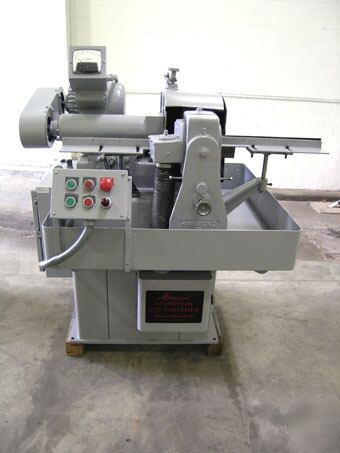

Liberty Machinery Company You are looking at a Hammond, 2", No. OD-2 Dry Type, Air Tension, 7.5 HP, Work Guides, Adjustable Angle Serial No. 668Condition - UsedNew - 1982 SPECIFICATION:Workpiece Diameter 0" - 2"
Regulating Head Roll 6" D x 4" W
Regulating Head Drive, 90 V, DC 1/4 HP
Adjustable Angle 0 - 15 Degrees
Approximate Floor Space Required 51" L x 68" W x 54" H

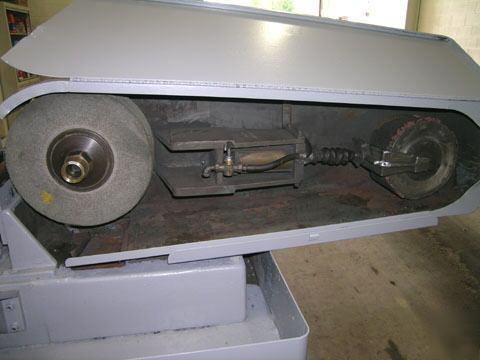

Approximate Weight 1,850 Lbs. EQUIPPED WITH:Abrasive Belt Attachment
Air Tensioning and Convenient Located Tracking for Belts

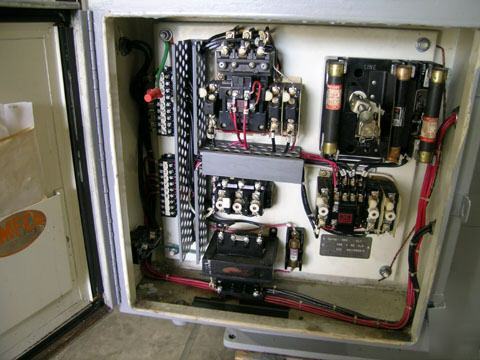

Machine Control Panel with Magnetic Starters, 115 V Control Circuit, AC
Ammeter for Spindle Drive, DC Control for Regulating Head Drive. Separate

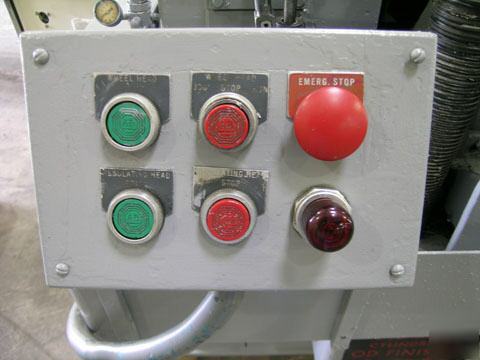

Pushbutton Station Mounting and Wiring.
