Battenfeld 130 ton injection molding machine

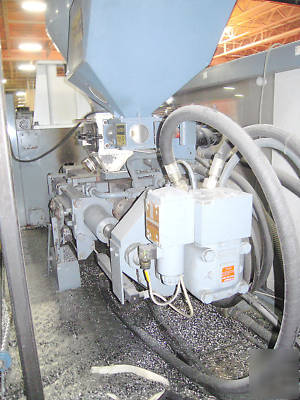

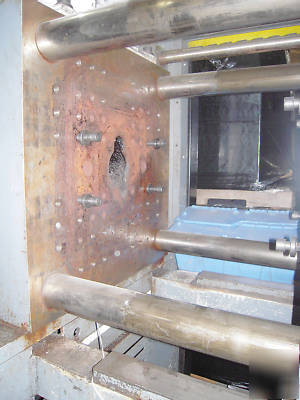

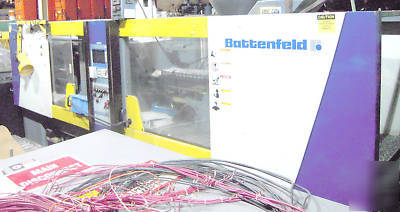

Battenfeld 130 Ton Injection Molding Machine
Hydraulic Pressure: 250L / 2538 PSI
Electrical Data: 230/460 Volts, 3 Phase, 60 Hz

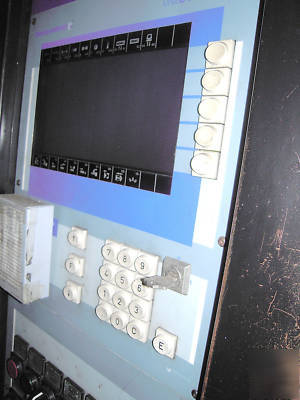

Battenfield Unilog 4000 Control

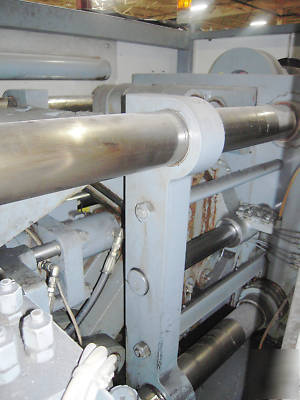

Space Between Tie Bars: 470x470 mm (18 1/2")
Hyd ejector: force, max: 54 kN, stroke: 160 mm
Inj unit: inj force max, 347 kN
Nozzle contact force max: 79.2 kN
Distance between tie bars : 470 x 470 mm mm
Pressure on material : 2182 bars
Overall dims: 5.31 x 1.3 m, 5300 kg
