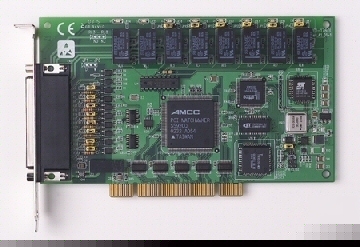

Advantech pci-1760U pci multifunction card - 8 in & out
The PCI-1760U relay actuator and isolated D/I card is a PC add-on card for the PCI bus. It meets the PCI standard Rev. 2.2 (Universal PCI expansion card), and works with both 3.3 V and 5 V PCI slots. It provides 8 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 8 relay actuators that can be used as a on/off control devices or small power switches, and 2 isolated PWM (Pulse Width Modulation) outputs for custom application.
For easy monitoring, each relay is equipped with one red LED to show its on/off status. Each isolated input supports both dry contact and wet contact so that it can easily interface with other devices when no voltage is present in the external circuit.
* Universal PCI card, for 3.3 V and 5 V PCI slot
* 8 opto-isolated digital input channels
* 8 relay actuator output channels
* 2 opto-isolated PWM outputs
* LED indicators to show activated relays
* Jumper selectable dry contact/wet contact input signals
* Programmable digital filter function for DI
* Pattern match interrupt function for DI
* "Change of State" interrupt function for DI
* Universal PCI and BoardID switch
COMPLETE DATA_SHEET FOUND ON WEB SITE BELOW
http://www.captec.co.uk/data/products/pdfs/pci_1760u.pdf
3. NO DOA is Guaranteed if not stated otherwise in description.
5. Your Satisfaction is our business.
Not sure if this is what your looking for Email Us!
This item is sold with a 30-day warranty, the seller reserves the right to choose to either replace or refund at our discretion, based on the availability and feasibility of replacement product.
