Schaevitz linear transducer type gca-121-250

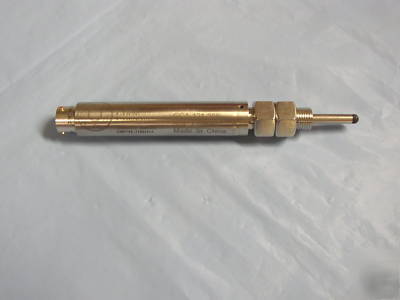

Schaevitz Linear Variable Differential Transformer / Transducer Type GCA-121-250

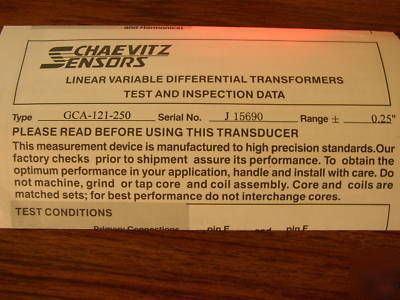

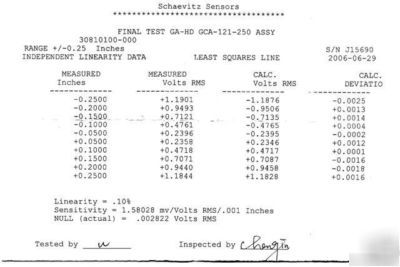

Unused surplus equipment in original box with test and inspection data
Stainless steel construction enables the GCA Series gage head to perform in environments containing moisture, dirt and other contaminants. Electronic components are hermetically sealed for added protection against hostile conditions.
Maximum spring force is typically 8 oz (226.8g), dependent upon probe position. The working end or probe has a removable chrome plated, hardened tool steel tip threaded to the probe with a 4-48 UNF-2A threading.
Internal construction prevents the core and shaft from rotating as they move longitudinally. Units terminating into connectors allow for easy cable replacement if damage should occur. Installation and adjustment are facilitated by external threading; locknuts are provided.
* Stroke length: 0.25+ in. (6.35+ mm)
* Accuracy (% of Full Range Motion): 0.25
* Impedance (Ohms): Primary 430, Secondary 950
Sensitivity (mV/V/0.001"): 4.2
