Z-comm vco 1990MHZ-2200MHZ, V610ME09, mini-16-l

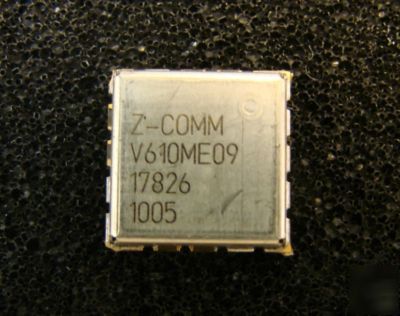

This is one piece of New Z-COMM VCO, 1990MHZ to 2200MHZ, Part Number: V610ME09 in Mini-16-L Package (0.5"x0.5"x0.13").
* Frequency Range: 1990MHz to 2200MHz;
* Phase Noise: -95dBc/HZ at 10KHz offset;
* Tuning Voltage: 0.5V to 4.5V;
* Tuning Sensitivity: 70MHz (avg);
* Pulling: < 15MHz (14dB return Loss);
* Operating temp: -30C to +75C;
http://rfbayinc.com/Data_Sheet/VCO/V610ME09.pdf
