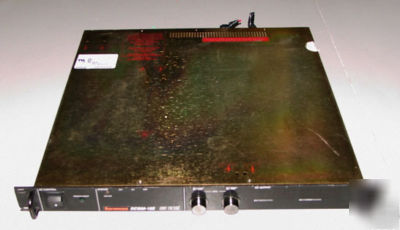

Sorensen xantrex DCS60-18E dc power supply 60V 18A
Xantrex\Sorensen DCS 60-18E DC Power Supply 60V 18A
The DCS60-18E is a 1 kW DC programmable power supply utilizing switch-mode technology to achieve high power density in a low profile chassis. The DCS60-18E provides continuous full output power in any volt/amp combination within the rated output voltage and current limits. The DCS60-18E has 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming, shutdown and overvoltage protection, status and constant-voltage/current mode operation.
* Ripple & noise (voltage/rms peak-peak): 20 mV/100 mV
* Line/Load regulation (voltage/current): 0.1%/0.1%
* 100-132 Vac, single phase, or 200-250 Vac, single phase; 47-63 Hz operation
* Size: 44 mm (1.75 in)H x 482 mm (19.0 in)W x 444 mm (17.5 in)D
