Pc usb arbitrary waveform generator dds-3005 usb
Operating system: Windows98,Windows Me, Windows NT, Windows 2000, Windows XP,VISTA (32 bit )
2.1 Minimum System requirements
Pentium 400M CPU or compatible PC, 64 RAM, 1024x768 VGA, Windows98/Windows2000/WindowsXP USB1.2 or USB 2.0 port.

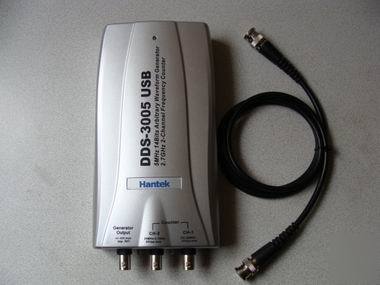

2.2 DDS-3005 Shape and Terminal Illustration
Digital Output Port Definition
DDS-3005V1.08 Software Operations
Connect the USB instrument to the USB port through the USB cable, the PC prompts that new USB device is found.
The PC will automatically find the new USB device and choose the nominated directory to install the driver.
Choose the correct directory of the driver through the browser or search in the CD driver
Click "Continue" to finish the installation.
The system will notify that the new USB device can work normally now.
After the successfully installation, in the Device Manager, you can see the DDS-3005 device.
The setup software of DDS-3005 is in the CD, run the Setup.exe to install the software.
Click "Start"- "Program"-"DDS-3005"-"DDS-3005" to go into the main window, shown as below:
Press down any button of certain waveform to switch to the output of such kind of waveform. When switch to arbitrary waveform from other kind of waveform, the edition work can be done on the original wave form.
Select the "Parameters" in the Menu, there are the choices for setting of various waveform parameters.
to set the parameters in the dialog box.
3.6 Counter/ Frequency Measurement
To measure by the buttons shown as below:
Including "High Frequency/ Low Frequency" , "Coupling Mode" "Frequency Measure/ Counter" and the function's "On/Off".
By the following buttons to control the output dot numbers, trigger mode, output amplitude, and limit frequency of the wave filter.
3.8 Edition of Arbitrary Waveform
Choose the "Arbitrary Dot Edit" in the "Edit" Menu, or double-click the display window to edit each dot, or use the mouse the draw the waveform.
The data format of DDS-3005V1.08 is ".CSV". Its format is compatible with the CSV file produced by the Tektronix ARBExpress software. User can edit or set up the required CSV waveform and also use Excel to open and edit the CSV wave files.
