New 20 hp nortrac tractor ag tires + front end loader

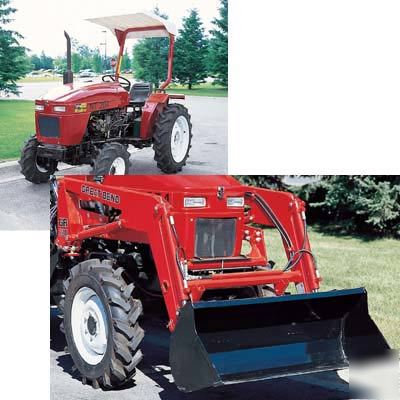

20 HP NorTrac Tractor Ag Tires + Front End Loader NEW!
The ideal tractor to have for around the home, at work or on the farm! FREE power steering is included. Three cylinder liquid-cooled diesel engine. 4-wheel drive works great for pulling out of mud and snow. 3 point category 1 hitch. Canopy also included.
* Standard 4ft. material bucket
* Lift capacity to full height at 2600 PSI: 930 lbs.
* Maximum lift height (ground to lower bucket pin): 78 1/2in.
* Clearance with bucket dumped: 64in.
* Reach at maximum height (front of tractor to front of bucket): 32 1/2in.
* Overall height in carry position: 4ft. 9in.
* Hydraulic control valve requirements: two spool selective control valve required for loader and hydraulic controlled bucket cylinders
* Lift and bucket cylinders: double acting
* Bucket control: hydraulic twin cylinders
* Bucket cylinder size: 1 3/4in. bore x 17 1/4in. stroke
* Lift cylinder size: 1 1/2in. bore x 17 1/4in. stroke
* Lowering time: 4.0 seconds
* Bucket dump time: 5.0 seconds
* Bucket rollback time: 3.5 seconds
* Control panel includes fuel gauge, oil pressure gauge, hour meter and Amp meter
* *NEVER ATTEMPT FULL ROLLBACK IN RAISED POSITION WITH FULL BUCKET.
* Delivery time will vary from 3 - 9 business days depending on the delivery location
