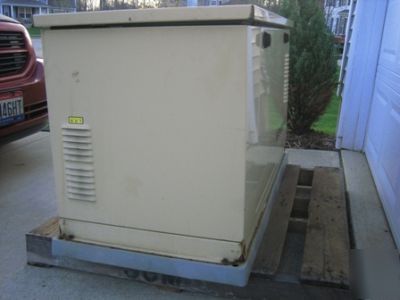

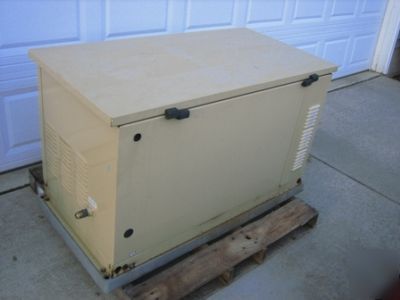

04456 generac guardian generator 12KW ng/lp low hours
Rated Maximum Continuous Power Capacity (LP)......................................... 12,000 Watts
Rated Maximum Continuous Power Capacity (NG)........................................ 12,000 Watts
Rated Voltage...................................................................................................120/240
120 Volts ...................................................................................................... 100.0 NG/100.0 LP
240 Volts ...................................................................................................... 50.0 NG/ 50.0 LP
Main Line Circuit Breaker .................................................................................... 50 Amp
Phase ...................................................................................................................... 1
Number of Rotor Poles ........................................................................................... 2
Rated AC Frequency ............................................................................................. 60Hz
Power Factor ............................................................................................................. 1
Battery Requirement (included) ................................................................ Group 26/26R
12 Volts and 12 Volts and 12 Volts and
350 Cold-cranking 550 Cold-cranking 550 Cold-cranking
Amperes Minimum Amperes Minimum Amperes Minimum
Dimensions (L x W x H ).............................................................................. 48 x 24 x 28-1/4

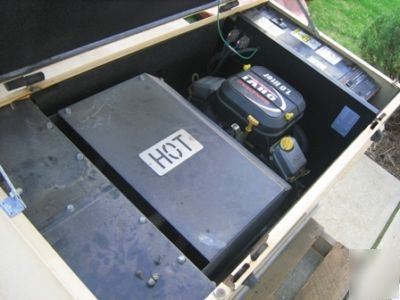

Type of Engine............................................................................................... GENERAC OHVI V-TWIN
Number of Cylinders................................................................................................ 2
Rated Horsepower....................................................................................... 26 @ 3,600 rpm
Displacement......................................................................................................... 763cc
Cylinder Block.............................................................................................. w/ Cast Iron Sleeve
Valve Arrangement......................................................................................... Overhead Valve
Ignition System......................................................................................... Solid-state w/Magneto
Compression Ratio................................................................................................. 9.5:1
Starter.................................................................................................................... 12 Vdc
Oil Capacity Including Filter........................................................................... Approx. 1.7 Qts
Operating RPM...................................................................................................... 3,600
Natural Gas..............................................cu.ft./hr.
.................................................................1/2 Load ......................................... 152
................................................................Full Load ........................................ 215
Liquid Propane....................................ft3/hr(gal/hr)
................................................................1/2 Load .................................. 56(1.53)
................................................................Full Load ................................... 76(2.08)
-Auto ........................................................................................................................................................... Automatic Start on Utility
-Off .......................................................................................................................................................... Stops unit. Power is removed
Control and charger still operate
-Manual/Test (start) ................................................................................................................................ Start with starter control, unit
stays on. If utility fails, transfer to load takes place.
Engine Start Sequence Cyclic cranking: 7 sec. on, 7 rest
Engine Warm-up .............................................................................................................................................................. 10 seconds
Engine Cool-Down ............................................................................................................................................................. 1 minute
Starter Lock-out ............................................................................................................................................... Starter cannot re-engage until
5 sec. after engine has stopped.
2.5 Amp Timed Trickle Battery Charger ............................................................................................................................ Standard
Automatic Voltage Regulator w/Overvoltage Protection .................................................................................................... Standard
Automatic Low Oil Pressure Shutdown ............................................................................................................................. Standard
Overspeed Shutdown .................................................................................................................................................. Standard, 72Hz
High Temperature Shutdown ............................................................................................................................................ Standard
Overcrank Protection ....................................................................................................................................................... Standard
Safety Fuse ..................................................................................................................................................................... Standard
