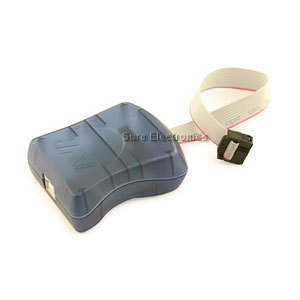

Mini ATMEL AVR ATMEGA STK500 USB Programmer ISP
This USB STK500 programmer supports a wide range of ATMEL AVR microcontrollor.
It communicates with PC vai USB port, and it works with most of PC & notebook computers.
It works with ATMEL AVR Studio 4.13.
* You should connect the programmer step by step as following.
1. Connect AVR STK500 with target board, make sure connection is OK.
2. Power on the target board.
3. Join up the USB A-B cable with programmer to the computer.
For programming, the four lines required from the AVR chip to the ISP adaptor (dongle) are:
* MOSI (Master out, slave in): Data being transmitted to the AVR being programmed is sent on this pin.
* MISO (Master in, slave out): Data received from the AVR being programmed is sent on this pin.
* SCK (shift clock): Serial clock generated by the programmer from the PC.
* RST (Reset ) : Reset(low pulse) generated by the programmer.
* VTG: While release one port it will result in VTG on the appropriate port header connect. Valid target voltage range is 5 V.
* GND: Signal ground and power ground.
1X Mini ATMEL AVR ATMEGA STK500 USB Programmer ISP
Go to Download Center for driver, application or manual
