1PC riko proximity sensor RN05-n DC10~30V 4MM taiwan

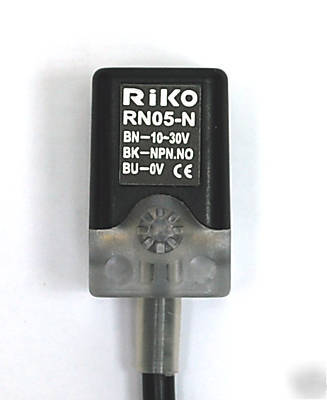

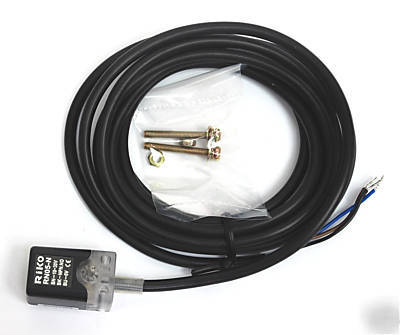

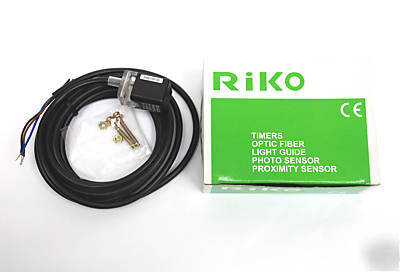

Riko Proximity Switch RN05-N
Rectangular Inductive High Speed
Has a 4mm sensing distance, response time only 2ms (500hz)
Working Voltage 10~30VDC, 8mA current consumption,
and 100mA control output (NPN open collect, NO)
Hysteresis : 10% of sensing distance
Working temperature -20 ~+60 C
Body dimension : 29.0x18.0x18.0mm, LxWxH
Screw hole=3.5mm, pitch=11.0mm
