Ge fanuc series 90-30 IC693MDL940 output module

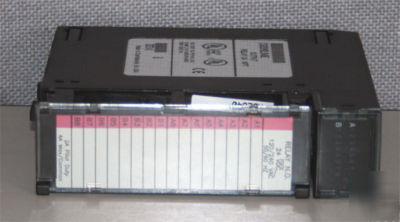

GE Fanuc Series 90-30 IC693MDL940 Discrete Output Module
Today businesses are under pressure to make their operations more flexible which requires more versatile control solutions. Therefore, GE Fanuc offers the Series 90-30 PLCs to provide a wide range of functions from simple relay replacement to sophisticated mid-range automation. With over a 100 discrete and analog I/O modules and an innovative architecture and modular design, you can have the exact application you need and expand your system as your company grows.
For entry-level applications with low I/O counts, the CPU is embedded into the backplane allowing all slots available for I/O. The high-performance CPUs are based on the Intel 386EX processor for fast computation and high throughput. They can handle up to 4,096 I/O and start at 32K of memory and are programmable in a number of standard languages.
Series 90-30 power supplies are tied into the performance of the CPU for simplex, fail-safe, and fault tolerance. Advanced diagnostics and built-in smart switch fusing are among other performance and safety features.
Distributed I/O Communications
The Series 90-30 has a variety of communications options available including Ethernet, Genius, Series 90 Protocol (SNP), and RTU.
A genuine distinction of the Series 90-30 is in its I/O. There are over 38 different discrete I/O types and 17 analog I/O types, including: high-speed counters, I/O processors, programmable coprocessors, temperature controls, servo motion controllers, and PC coprocessors.
Specialty modules include thermocouples, RTD, millivolt/strain gauge, sequence of event recorders, isolated analog, modem modules, and a pneumatic valve output module.
* Output Voltage Range: 0 to 125 Volts DC, 5/24/125 Volts DC nominal; 0 to 265 Volts AC (47 63 Hz), 120/240 Volts AC nominal
* Load Current per Point: 2.0 Amps
* Response Time (ms): 15 on / 15 off
* Connector Type: Terminal Block (20 screws), included with module
* Internal Power Used: 7 mA @ 5 Volts DC; 135 mA @ 24 Volts DC Relay
