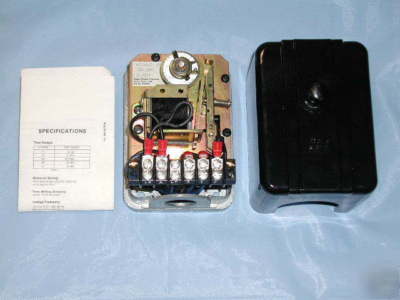

Eagle Signal Timoflex Reset Timer #HD32A623
Unused surplus part in original box w/ instructions
* Changes in the time setting are made by pulling the dial out and turning it to the desired setting. Releasing the dial automatically locks in the new setting.
* When the clutch coil is energized, the pawl engages with the dial ratchet and holds it stationary until the dial mechanism drives the pawl downward to transfer the switches.
* When the coil is de-energized, the pawl is released from the ratchet and the timer resets.
* Synchronous Motor Driven
* Only Two Motor Driven Parts
* Solenoid Controlled Reset
* Time Range: 27.5 Minutes
* Minimum Setting: 4% of Dial Range
* Time Setting Accuracy: Within 1% of Total Scale
* Voltage / Frequency: 120 VAC (+10 -15%), 60 Hz
* Reset Time: 0.2 Second Maximum
* Coil: 25 VA Inrush, 15 VA Normal
* Contact Rating: SPDT Snap-Action Switch, 10 A - 120 VAC / 5 A - 240 VAC
* Dimensions: 4-1/2"H x 3-1/4"W x 3-13/16"D
