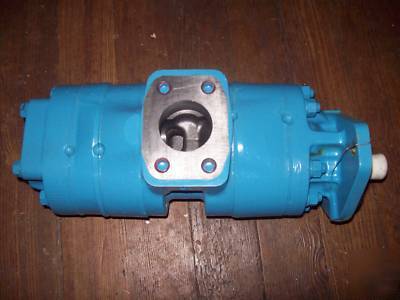

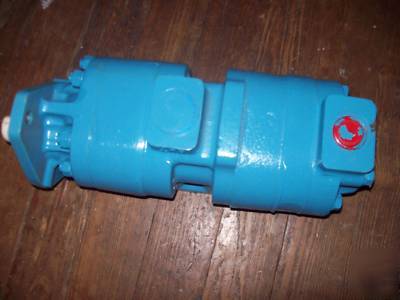

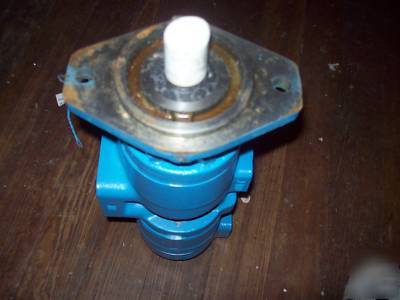

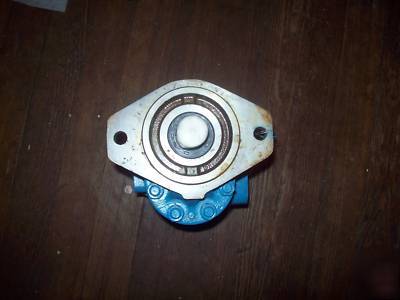

1 barnes horizontal rotary pump element
AAYT INTAKE CONNECTION QUANTITY 1
AAYU INTAKE CONNECTION TYPE RECTANGULAR FLANGE
AAYV DISCHARGE CONNECTION QUANTITY 2
AAYW DISCHARGE CONNECTION TYPE THREADED INTERNAL AND THREADED INTERNAL
AAYX DRIVE CONNECTION TYPE CLOSE COUPLED
AHYV MAXIMUM DISCHARGE FLOW RATE 24.0 GALLONS PER MINUTE AND 13.0 GALLONS PER MINUTE
AHYW DISCHARGE PRESSURE 100.0 POUNDS PER SQUARE INCH GAGE
AHYZ OPERATING SPEED AT RATED CAPACITY 1200.0 REVOLUTIONS PER MINUTE
AHZA PUMPING ELEMENT OPERATING POSITION HORIZONTAL
AHZD PUMP ROTATION DIRECTION COUNTERCLOCKWISE
AHZR ROTARY PUMP DESIGN GEAR
AHZT OPERATION METHOD POWERED
AJAB DRIVE SHAFT TYPE MACHINE KEYWAY
AJAC DRIVE SHAFT END DIAMETER 0.998 INCHES MINIMUM AND 1.000 INCHES MAXIMUM
AJAD DRIVE SHAFT LENGTH 1.440 INCHES NOMINAL
AJAF UNPACKAGED UNIT LENGTH 15.840 INCHES NOMINAL
AJAG UNPACKAGED UNIT WIDTH 6.880 INCHES NOMINAL
AJAH UNPACKAGED UNIT HEIGHT 6.100 INCHES NOMINAL
AJAL PUMP BASIC MATERIAL STEEL
ASAZ DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR 1.312-12 UN AND 1.062-12 UN
FEAT SPECIAL FEATURES DUPLEX PUMP;INLET 4-BOLT FLANGE 2.00IN.DIA; SHAFT SAE BB STRAIGHT KEYED; DOUBLE SEAL
PRPY PROPRIETARY CHARACTERISTICS PACS
