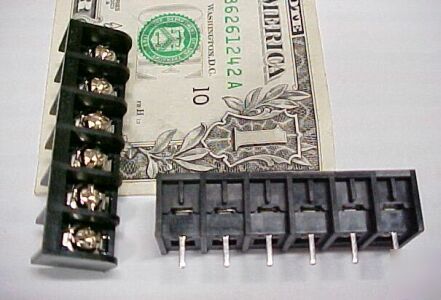

Lot 10 circuit board terminal blocks barrier strips 15A
Click here to see our other PCB terminal blocks
Overall height (excluding pins): .495"
Pin spacing: .325" (8.26 mm) OC (on centers)
Pin dimensions: .046" x .032" x .200" long
Screws: PhilSlot (phillips head or flat slotted)
The part number CBD102206 breaks down as follows:
Series A1000 & Series CB1000 Single Row Terminal Blocks
Center Spacing: .325 (8.26 mm)
Screw Size: #6-32 zinc plated philslot wire-ready screws with a #2 driving recess.
Base: Standoffs are standard on CB1000 Series for easy flux washing.
Distance Between Barriers: .26 (6.6 mm)
Recommended PCB Hole Diameter: .070 (1.78 mm)
Operating Temperature: 105F (221F) max., -40C (-40F) min.
Molded Material: Black, UL Rated 94VO Thermoplastic
Approvals: UL E62622; CSA LR15364; IEC Compliance; CE Certified
