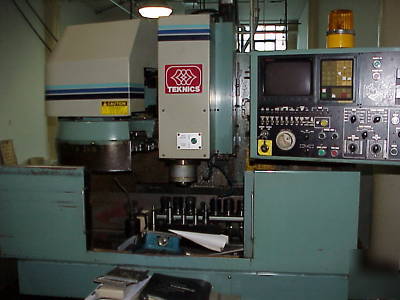

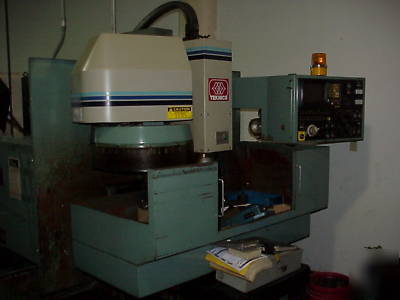

Cnc milling machine teknics rc-520
TEKNICS RC-520 MACHINE SPECIFICATIONS
THESE SPECS WERE TAKEN OUT OF THE MANUAL
CLOSING SHOP FOR HEALTH REASONS
TABLE TO SPINDEL MINIMUM TO MAXIMUM MIN. 5.7" - 28" MAX
TABLE SIZE LENGTH X WIDTH 37.4" X 15.7"
T-SLOTS (WIDTH X NO. X PITCH )
3 CENTER SLOTS .709" X 3 X 3.937"
BOTH SIDES 2 SLOTS .709" X 2 X 2.165"

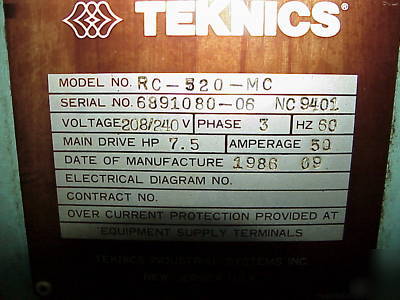

MOTOR RATING ( FANUC AC ) 10HP (30 MIN) AC 7.5 ( CONT )
ACCURACY AND REPEATABILITY + o r.00024, + o r- .00012
PROGRAMMABLE FEED .04 - 200 IPM
CLOSED LOOP DC MOTORS WITH OPTICAL ( LINEAR SCALES OPTIONAL)
NUMBER OF TOOLS 20 TOOL SELECTIONS BI-DIRECTIONAL RANDOM TYPE
MAXIMUM TOOL DIAMETER AND LENGTH 4" X 12"
WEIGHT APPROXIMATELY. 10,700LBS.
