> Ashcroft deadweight portable test pump 1327D w/ gauges
Ashcroft deadweight portable test pump 1327D w/ gauges
A Ashcroft Portable Test Pump 1327D

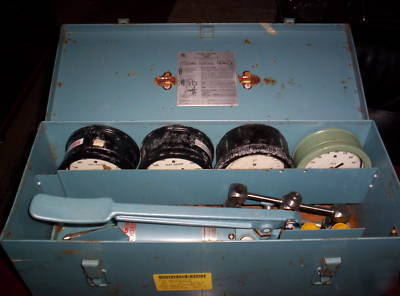

This item comes in a metal toolbox-like case

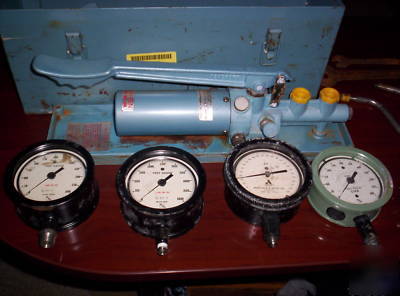

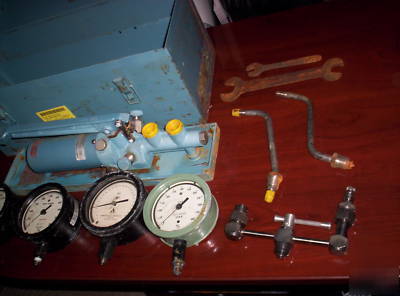

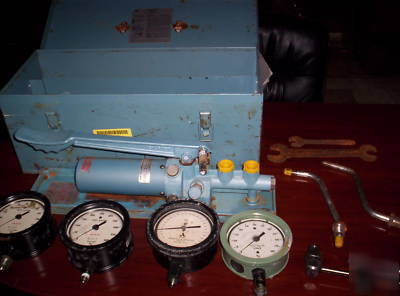

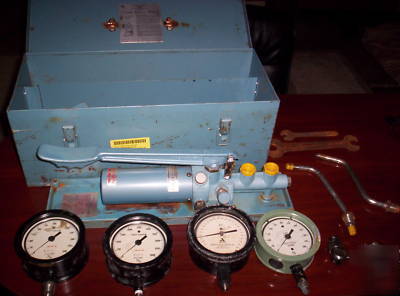

Comes with everything pictured - Pressure pump, 4 large gauges, adapters & gauge connectors, 2 wrenches, the carrying case and the instruction manual
Ashcroft 1327 Hydraulic Pressure Pump
Ashcroft Types 1327 is designed to be a field portable pressure generation system. A single carrying case holds the pump used to generate pressure as an optional accessory. The 1327 is an Ashcroft two-stage hydraulic pressure pump. A built-in shuttle valve allows for rapid pressure increase at low pressures. The rate of increase per pump cycle can be reduced at higher pressures in order to minimize resistance. This is accomplished by simply repositioning the two-position shuttle valve. With the shuttle valve in the high-pressure position, increasing pressure even when near 10,000 psi can be accomplished quickly and easily. Final adjustment is accomplished through the use of an integral vernier-adjustment knob.
Operating Pressure: 0-10,000 PSIG (max) (0-70,000 kPa)
Standard: SAE 20 weight automotive or machine oil
Optional: Phosphate-based or glycol fluids;
Distilled water for oxygen service
O-ring Material: Buna N or Ethylene Propylene (Option H)
Reservoir Volume: Approximately 1.5 pints (0.7 liter)
Operating Pressure: 0 to 10,000 PSIG (70,000 kPa)
Operating Media: 1327D: SAE 20 Oil or machine Oil
1327DH: Phosphate-based or glycol fluids
O-ring Material: 1327D: Buna-N (D series)
1327DH: Ethylene Propylene (DH Series)
Reservoir Volume: Approximately 1.5 pints (0.7 liter)
