12V-16.8V dc to dc 12V-13.2V selectable 4AMP regulator

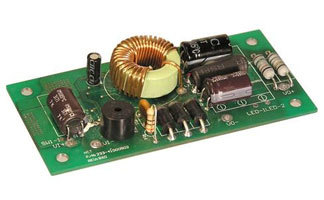

12v-16.8v DC to 12v-13.2v DC Selectable 4Amp Regulator
* Designed for converting 14.8V Li-Ion battery pack into a 12V and 13.2V DC output to replace 12V Lead acid and NiMH battery pack.
* Input Voltage: 12.0-16.8VDC.
* Over-voltage Protection with Zener diode.
* Short Circuit protection; The output short to ground with auto-recovery function.
* The alarm buzzer will sound when the input voltage is less than 12.6V.
* Dimension(LxWXH):100mm(4.0")x50mm(2.0")x20mm(0.8").
* 1.3 Efficiency 88%(min.) at full load,
* 2 Selectable output voltage.
* Output voltage #1-12.0V (4 Amp Max) by connecting SW1-1 to SW1-2,
* Output voltage #2-13.2V ( 4Amp Max) by connecting SW1-1 to SW1-3,
