Tektronix 465B 100 mhz dual channel oscilloscope


TEKTRONIX MODEL 465b 100 MHZ ANALOG OSCILLOSCOPE
This is a two channel, two trace oscilloscope with a bandwidth from 0 - 100 MHz. Traces are sharp and bright with no burned spots anywhere. Display is 8 cm x 10 cm in size.
Vertical sensitivity: from 5v/div to 5 mv/div
Horizontal sweep rates: from 0.5s/div to 0.02 us/div (with an additional 10x magnification to 0.002 us/div)
Scope will display: ch1, ch2 , alt, chopped, add, X-Y modes
This scope also has a B delayed function where you can select a different timebase and examine in detail a section of the main A trace. Great for video waveforms where a single line can be selected from a full field.

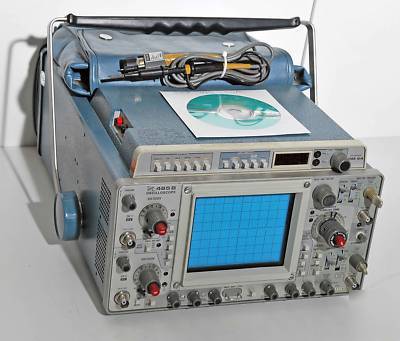

Comes with a used Tektronix P6105 10x 100 mhz scope probe, scope pouch, and copy of manual in PDF format on cdrom.

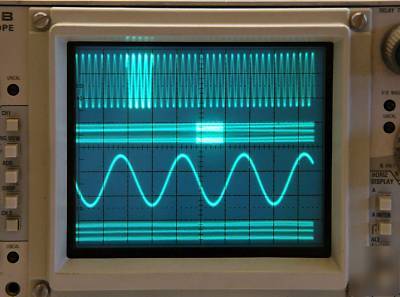

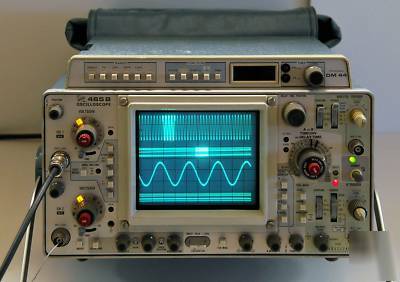

Photos show scope connected to a function generator, with ch2 connected to a short wire - picking up stray rf. Photos also show the B delayed function with a different timebase than the A mode.
Used, tested, guaranteed working as stated above.
