Phi model 230 hydraulic tube bender

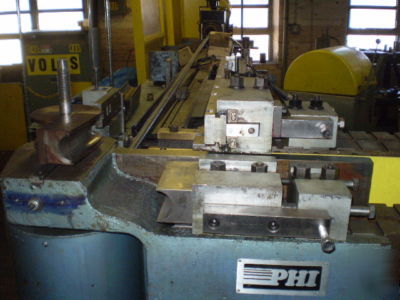

PHI Model 230 Hydraulic Tube Bender
Left Hand (this information must be checked for accuracy)
3 OD X 1/8 Wall X 2.0 minimum centerline radius, 35000 PSI Yield
180 degrees (195 degrees max arm travel)
Drop Away, direct acting hydraulic mandrel
10 position, 3 axis, self-indexing degree of bend control
Degree of Bend 0.1 digital display
Programmable Micro Processor 100 memory programs, 10 bends in each program (degree of bend only). 24 VDC inputs and outputs
1000/2500 Max PSI, 40 gal reservoir
Maximum Circle that you can cut
PHI can be reached at (***)-968-9680 and their website address is: .
Special Notes: The overlay for the operator station has been slightly damaged. A replacement overlay is available. The replacement was never installed.
The bend die is rotated by a chain driven sprocket which is pulled by a hydraulic cylinder. This machine has manual, Semi, or Syncro mode of operation. Manual mode permits individual operation of the clamp mandrel, pressure die, and bend arm. Semi model sequences the above operations when pressing the bend cycle push button. Syncro mode is a synchronized indexing system which is electronically interlocked by a low DC voltage system to prevent mis-bending due to improper tube positioning.
The user manual is included with this machine.
Tooling is NOT included with this machine.
