New RLY240 relay cube timer ac dc nte in box

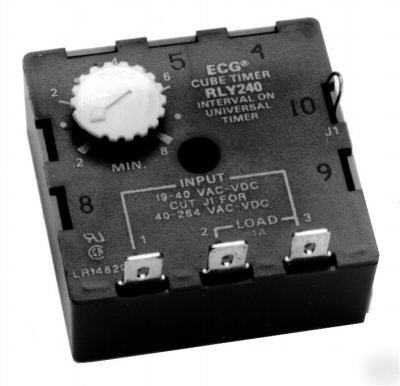

RLY240 RELAY-CUBE TIMER AC/DC NTE
2 x 2 Industry Standard Package
19 288 Volts AC or DC Operation
.2 to 8 Minutes Timing Range
.250 Quick Connect Terminals
INTERVAL ON The relay energizes and timing begins when the
input voltage is applied. At the end of the time delay period the relay
will de energize. Reset is accomplished by removing, then
* For higher current applications connect a switching relay in series with
Input Operating Voltage Range (Line):
Jumper J1 Not Cut: 19 40 V DC or AC
Jumper J1 Cut: 40 288 V DC or AC
AC Operating Frequency: 50/60 Hz
Switch Configuration: Solid State, SPST
Switching Current (Load): 40mA Amp min., 1 Amp max.
Timing Adjustment Range: 0.2 to 8 minutes
Expected Life (Electrical): 100,000,000 operations @ rated load
Operating Temperature: 20 to +80 C
Storage Temperature: 40 to +85 C
Dielectric Breakdown Voltage Between All E
