Modine steam/hot water unit heater - model V193S01

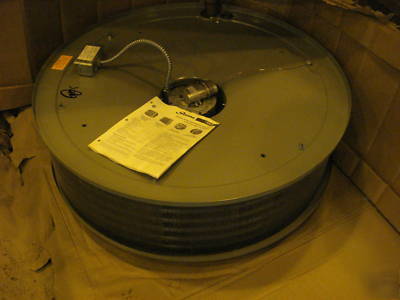

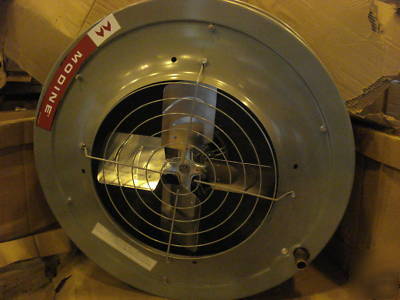

You are looking at a brand new, still in box, never installed unit heater. It was purchased from Chrysler Corporation Newark Assembly in Newark Delaware in a lot sale. The box has some damage but the heater is fine. I have supplied photos of the unit.

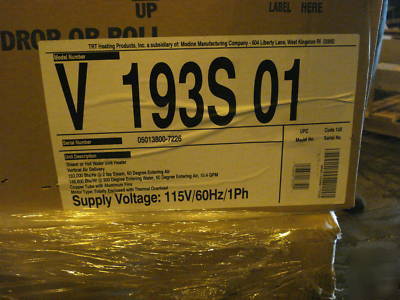

Modine Steam/Hot Water Unit Heater - Model V-193S-01
193,000 Btu/Hr @ 2lbs Steam, 60 Degree Entering Air
148,800 Btu/Hr @ 200 Degree Entering Water, 60 Degree Entering Air, 15.4 GPM
Copper Tube with Aluminum Fins
Motor Type: Totally Enclosed with Thermal Overload
You can download the catalog from Modine at this link for all the product specific information.
http://www1.modine.com/publications/litsearch.php?PHPSESSID=64a45b18304eed928d91e75fb8d9f39a&srchcrit=75-136
Modine Model V/VN vertical steam/hot water unit heaters are designed for long
heat-throw, uniform comfort heat delivery, and reduced maintenance. The units are
recommended for areas where ceilings are high or where obstructions do not permit
good horizontal movement of air.
Units install quickly, easily, and at low cost because they are lightweight, yet are
Carefully-selected motors and fans with a scientifically designed venturi fan-shroud
reduce noise levels to a satisfactory minimum.
Totally enclosed motor with thermal-overload protection.
A motor heat shield protects the motor from heated air passing through the heater.
Fans are statically and dynamically balanced.
Fan and motor assemblies are exposed and can be removed without lowering the unit
The unit casing is treated for protection against corrosion prior to the application of the
attractive gray-green, baked-on polyester powder coat paint finish.
A variety of deflector-blade options provides an increased degree of control over airdischarge
Low outlet temperature models are recommended for steam pressure above 30 PSI,
but can also be used in dirty environments to minimize buildup of air contaminants on
Modine VN models feature coils made from cupro-nickel tubes that have the extra
strength to withstand higher steam pressures (250 PSI) or water temperatures (400 F).
