Bga 6 balls reballing repair resoldering template kits
BGA balling reballing repair resoldering Pro 2 Station
Complete Kits with Balls, universal template ( without station)
This set included the popular size BGA repair or replacement.

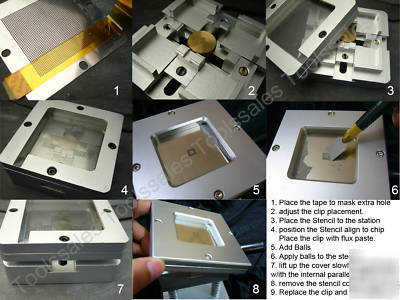

This is a professional grade BGA re-balling station. Solid machine aluminum finished with anodized plating, High quality re-balling station for all the large CPU, Video chip, BGA component soldering / re-soldering works. The universal template that allow you to mask your specific hole pattern ( matched tape included) for fast chip reballing. This system was employ for manufacturing a lot of portable electronics product, which especially suit for company had low volume need in BGA production or professional repair shop. Please see the picture for operation.
0.40mm template: 0.8mm pitch 50 x 50 balls, 0.2mm thickness
0.45mm template: 0.8mm pitch 50 x 50 balls, 0.2mm thickness
0.50mm template: 0.8mm pitch 50 x 50 balls, 0.3mm thickness
0.55mm template: 0.8mm pitch 50 x 50 balls, 0.3mm thickness
0.60mm template: 1.0mm pitch 50 x 50 balls, 0.3mm thickness
0.76mm template: 1.27mm pitch 40 x 40 balls, 0.3mm thickness

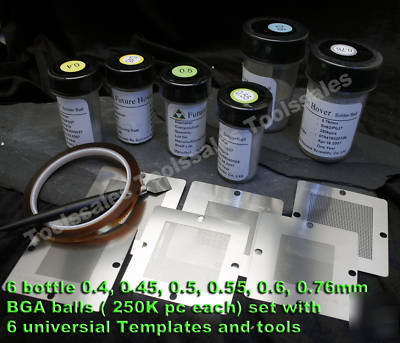

1 each, total 6 template. 0.4, 0.45, 0.5,0.55,0.6, 0.76 mm BGA universal template
1 each, total 6 bottle of 250K each balls. 0.4, 0.45, 0.5,0.55,0.6, 0.76mm BGA
Spare parts are available upon providing parts number, manual
