> 6" x 12" harig hand-feed horiz-spdl surf grinder #25830

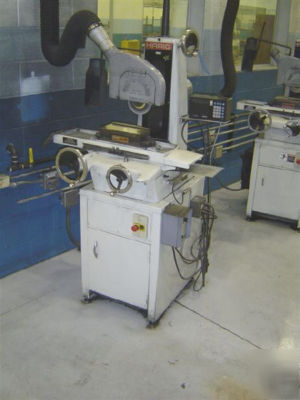

6" x 12" harig hand-feed horiz-spdl surf grinder #25830
New 1982, Serial No. 14387, Model 612
5" x 10" Walker Electro-Magnetic Chuck
Table Working Surface, W x L........... 6" x 12"
Height Under 7" Grinding Wheel......... 12"
Grinding Wheel, Maximum Diameter....... 8"
Grinding Wheel, Standard Diameter...... 7"
Grinding Wheel, Widths................. 1/2" to 1-1/4"
Grinding Wheel, Hole Diameter.......... 1-1/4"
Grinding Spindle Speed................. 3450 RPM
Longitudinal Table Travel.............. 12-3/4"
Cross Feed Travel...................... 6-3/4"
Electrical System...................... 220/3/60
Overall Dimensions, L x D.............. 48" x 45"
Weight, Approximately.................. 900 LBS.
