NE5534, high speed audio op amp, amplifier, qty 10

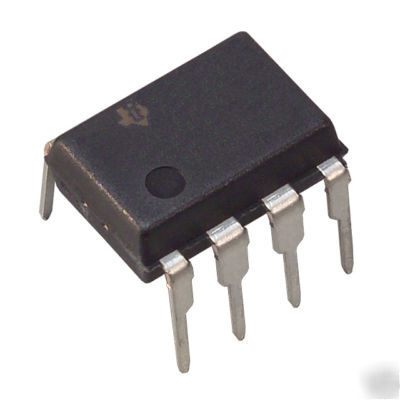

NE5534P, Low-Noise High-Speed Audio Operational Amplifier, 8 Pin DIP, Quantity 10, Texas Instruments.
The NE5534 is a high-performance operational amplifier combining excellent dc and ac characteristics. Some of the features include very low noise, high output drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, and high slew rate.
These operational amplifiers are internally compensated for a gain equal to or greater than three. Optimization of the frequency response for various applications can be obtained by use of an external compensation capacitor between COMP and COMP/BAL. The devices feature input-protection diodes, output short-circuit protection, and offset-voltage nulling capability with use of the BALANCE and COMP/BAL pins.
* Unity-Gain Bandwidth . . . 10 MHz Typ
* Common-Mode Rejection Ratio . . . 100 dB Typ
* High DC Voltage Gain . . . 100 V/mV Typ
* Wide Supply Voltage Range 3 V to 20 V
* External Compensation Capability
