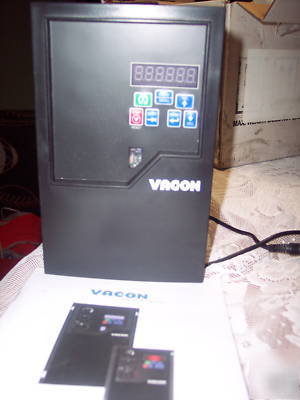

Vacon SE2C40010D01 variable speed ac drive
Vacon Variable Speed A/C Drive

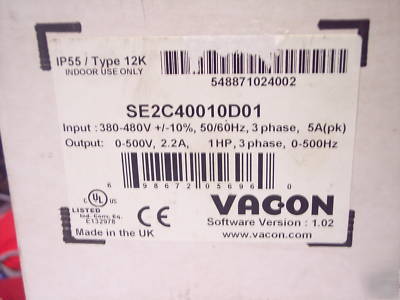

Input:380-480V +/-10%, 50/60Hz, 3 Phase 5A(pk)
Output: 0-500V, 2.2A, 1HP, 3 Phase, 0-500Hz
* Industrial-duty NEMA 12/IP55
* Resists low-pressure water, dust, dirt and chemicals
* Fast setup, factory default settings for most applications, only 14 basic parameters with a maximum of 40
* Enclosures that exceed expectations
380-480V +/- 10% - 3 Phase Input - 3 Phase Output
10.3 Maximum supply ratings for UL compliance
All the drives in the above chart are suitable for use on a circuit capable of delivering not more than these specified maximum short-circuit Amperes symmetrical with the specified maximum supply voltage.
kW HP Frame size Nominal input current (Amps) Fuse or MCB (Type B) (Amps) Nominal output current (Amps) 150% output curr. 60 s (Amps) Max. motor cable length (m) Min. brake res. value (Ohms) 1.5 2 2 9.2 16 7 10.5 100 47 2.2 3 2 13.7 20 10.5 15.75 100 47 4.0 5 3 20.7 32 18 27 100 47 kW HP Frame size Nominal input current (Amps) Fuse or MCB (Type B) (Amps) Nominal output current (Amps) 150% output current 60 s (Amps) Max. motor cable length (m) Min. brake res. value (Ohms) 0.75 1 1 2.9 5 2.2 3.3 25 - 1.5 2 1 5.4 10 4.1 6.15 25 - 1.5 2 2 5.4 10 4.1 6.15 50 100 2.2 3 2 7.6 10 5.8 8.7 50 100 4 5 2 12.4 16 9.5 14.25 50 100 5.5 7.5 3 17.6 20 14 21 100 22 7.5 10 3 22.1 25 18 27 100 22
