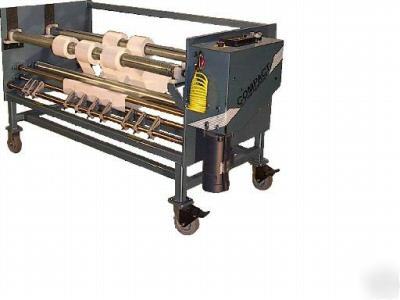

Slitter / rewinder: csr-compact slitter rewinder
YOUR LOW COST SOLUTION TO CUT ROLLS OF MATERIALS TO
* PRODUCTIVE, SIMPLE, SAFE, LOW MAINTENANCE
* GAINS CONTROL OVER YOUR SLITTING PRODUCTION
* RAZOR SLITS MOST MATERIALS - FILMS, RUBBER, VINYL, COMPOSITES
* CAPACITY UP TO 14" REWIND, STANDARD 18" UNWIND (LARGER UPON REQUEST
* 60" WIDE MATERIALS (OTHER SIZES AVAILABLE 12" - 144")
* DROP-IN SHAFTS FOR BOTH UNWIND & REWIND
* 3" DIA AIR LOCKING (AIR-LEAF) REWIND SHAFTS ARE STANDARD
* PNEUMATIC BAND BRAKE WITH LARGE DIAL REGULATOR OPERATION FOR MANUAL TENSION CONTROL
* QUICK-CHANGE CUTTER BAR AND ADJUSTABLE RAZOR BLADE HOLDERS W/ TILT ENGAGE LEVER
* VARIABLE SPEED DRIVE W/EASY SPEED POT CONTROL, WEB SPEED TO 150 FPM, 110v STD. POWER
* PROGRAMMABLE LENGTH COUNTER TO STOP MACHINE AT PRESET LENGTH, OR MECHANICAL LENGTH READOUT
* CASTERS FOR MOBILITY - MAXIMIZE FLOOR SPACE UTILIZATION
* MECHANICAL & AUTOMATIC TENSION CONTROL SYSTEMS
* EDGE GUIDING ON MASTER ROLL TO CORRECT TELESCOPING & MAXIMIZE MATERIAL UTILIZATION
* CANTILEVERED REWIND SHAFTS
* OTHER CORE SIZES THAT 3" STD.
ALL STANDARD FEATURES AND OPTIONS LISTED ABOVE, PLUS:
* RAZOR, SCORE, OR SHEAR CUTTING
* HARDENED ANVIL/ SLEEVES, DOVETAIL SLIDE, QUICK CONNECT LINES
* LARGER VARIABLE SPEED DRIVE TO 300 FPM, 230v 3ph
* SAFETY AUTO-LOK CHUCKS ON REWIND
* CAPACITY 14" REWIND, 18" UNWIND
* LARGER VARIABLE SPEED DRIVE TO 600 FPM, 230v 3ph
* CAPACITY 18" REWIND, 30" UNWIND (LARGER SIZES AVAIL)
* NIP DRIVE ROLL - ISOLATED TENSIONS
* AUTO TENSION CONTROL ON REWIND, PNEUMATIC BRAKE UNWIND, STANDARD
PINNACLE CONVERTING EQUIPMENT specializes in both STANDARD and CUSTOM Machines for the converting industry including:
* SLITTERS / REWINDERS / SHEETERS
* RAZOR / SCORE / HOT KNIFE / ULTRASONIC
* SIMPLEX / DUPLEX / DIFFERENTIAL REWIND
* CENTER SHAFT, CENTERLESS, BED ROLL DESIGNS
