New sinometer bench function signal generator 0.2-2MHZ

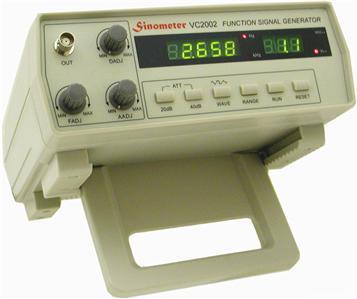

Sinometer Bench Function Signal Generator 0.2-2MHz NEW
* Out put waveforms: Sine wave, Triangle and Square wave.
* Out Put voltage: 0.9 - 10V
* Sine wave distortion: <2.0%
* 50 Ohms BNC to BNC coaxial cable: 1
* 50 ohms BNC to dual alligator clips cable: 1
Non-attenuate( 1Vp-p - 10Vp-p) 20% continuously adjustable
attenuate 20 dB( 0.1Vp-p - 1.0Vp-p) 20% continuously adjustable
attenuate 40 dB( 1mVp-p - 100mVp-p) 20% continuously adjustable
<2%, frequency stability: 0.1%/ min
Square wave rise and fall edges time < 100ns
Frequency display: 0.2 Hz - 2 MHz, display effective digit : four or five digits.
Time base: frequency 12 MHz, frequency stability : 5 X 10 -5
Size: 270 mm X 215 mm X 100 mm
