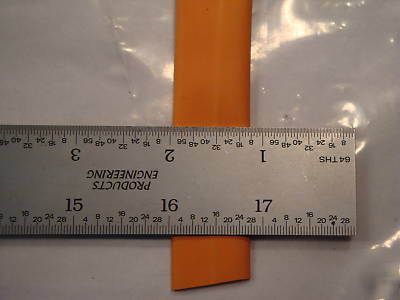

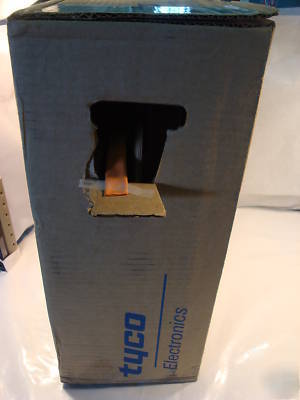

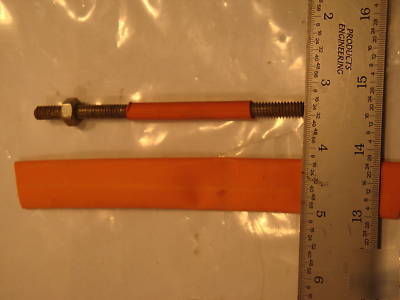

Versafit-1/2-3-sp raychem heat shrink tubing -10' piece
here is the product information sheet
http:// /catalog/bin/TE.Connect?C=1&M=BYPN&TCPN=678427-000&RQPN=678427-000&LC=en
* Product Type = Heat Shrinkable Tubing
* Material = Crosslinked Polyolefin
* Product Source = U.K., U.S.
* Expanded ID, Min. (mm [in]) = 13.72 [0.540]
* Recovered ID, Max. (mm [in]) = 6.40 [0.252]
* Product Use = Cables, Electronic Components, Harnesses, Wire Splices, Wire Terminations
* Fluid Resistance = Splash Protection
* Fluid Type = Aviation Fuel, Brake Fluid, Chemicals/Solvents, De-Icing Fluid, Hydraulic Fluid, Lubricating Oil, Water
* Resistant To = Fluids, Strain, Wrinkling
* Flammability Rating = Highly Flame-Resistant
* Wall Thickness - Full Recovery (Nominal) (mm [in]) = 0.64 [0.025]
* Approved Standards = CSA LR31929 VW-1, SAE AMS-DTL-23053/5 Class 1 & 3, UL E35586 VW-1
* Material Systems Code = 10
* Full Recovery Temperature ( C) = 90
* Shrink Temperature, Min. ( C) = 70
* Operating Temperature ( C) = -55 +135
* High Temperature Compatible = No
* Application = Cable Jacketing, Color Coding, Identification, Insulation and Protection, Wire Bundling
* Emission Free Type = No PBBs, PBBOs or PBBEs
