Fluke PM6306 programmable auto rcl meter w/ factory cal

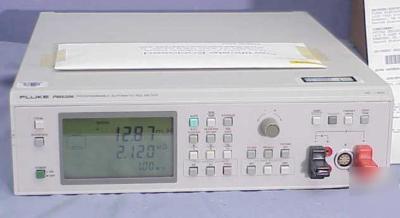

This sale is for a Fluke PM6306/023 Programmable Automatic 1 MHz RCL Meter & IEEE.
Recently returned from $550.00 Fluke Factory Calibration with certification and Data.
Has a set of new plug-in 4 wire test clips. Unit is in Mint condition. This is a very portable unit.
Can be configured with a variety of optional probes and available downloadable software from Fluke.
Tested and works great! Includes CD with users manual.
The PM 6306 combines excellent component measurement power and versatility with remote programmability.
Operation is as simple as ever - just connect the component to the test posts or fixture, and you can instantly read-out
the dominant and secondary values and see the equivalent circuit diagram on the large LCD display. The basic
capabilities of these instruments, with their wide range of test frequencies and voltage levels, make this one of
the best RCL meter values in the business. Available Microsoft Windows test software (not included), adds up
to a powerful component measurement and testing facility - from development lab right through to production line.
Computer-aided component testing
The IEEE-488 Interface and Component-View test software (optionally available from Fluke) makes the PM 6306
manufacturing. With the IEEE-488 interface, the RCL meter can become the heart of a fully automated component
testing environment for operation at up to 10 measurements per second. With Component-View, just recall an
instrument setup from a stored file.
* Easy-to-use, at-a-glance display
* Test frequencies from 50 Hz to 1 MHz (100 kHz for PM 6304)
* 0.1% basic accuracy (0.05% for PM 6304C)
* AC test levels from 50 mV to 2V rms
* Actual component test voltage/current readback
* Contact check and deviation mode
Front-panel test posts for immediate 4-wire measurements.
Click Here for Fluke's spec sheet pagesPersonal checks must clear first.
