Unitron unimet inverted polarizing microscope w/ optics

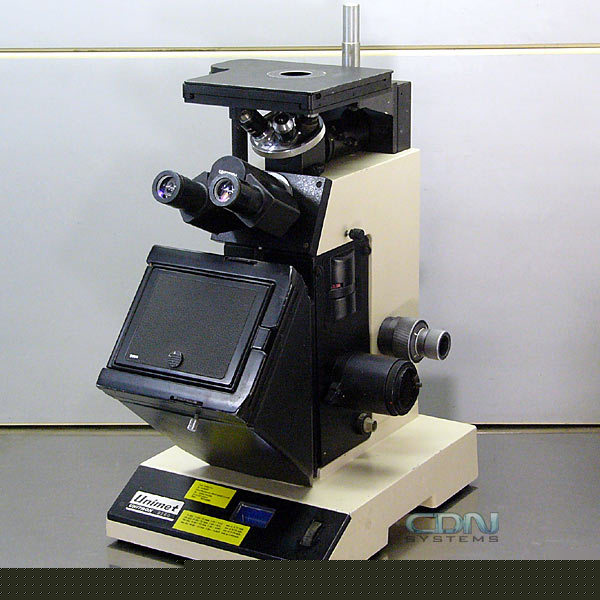

Unitron Unimet Inverted Polarizing Microscope w/ Optics
Testing notes: The view through this scope is pretty nice. All the optics we could look through are in Good working condition aside from some light dust that does not really interfere with the view through the scope. One of the eyepieces has a little fungus around the edge, and there are some faint scratches on the mirror for the large format camera. The primary lenses on the objectives have seen better days, but the glass appears to be unscratched, just the coatings look worn. (shown). The mechanical portions of the scope are in good working order. We were unable to test the camera shutter without a shutter control. The lamphouse for the vertical illuminator is missing, but any compatible 40mm OD lamp should fit fine. The lamp power supply built into the base does give output voltage, but only up to 14V, instead of 24, we are not sure why.
* Unimet 9260 Inverted Metalloscope Base with 35mm and large format camera mounts
* Unitron Bi20-3924 binocular head, with adjustable interpupillary distance 54-75mm
* Manual XYZ stage with graduated (rotation) dial
* Vertical illuminator with aperture and field adjustments, one graduated and one ungraduated polarizing filters
* NWF10x eyepieces with diopter adjustments in each
* Graduated 0-100 reticule in one eyepiece, matches the scale on microscope base
* Manual 5-place objective lens turret
* Epi MF5/0.10 170 Unitron 90813
* Epi MF10/0.25 170 Unitron 90893
* Epi MF10/0.40 170 Unitron 90892
* MF40/0.65 170 Unitron 90390
* Camera mechanism in the base has 20x, 15x, 12.5x, 10x, and 3.3x settings on it
* The Toyo camera has scales for centering 4x5, P545, 9x12, P405, and 6x7.6x9 films
* The 35mm camera mount has a threaded-on adapter marked "T-NF" on the back side
