Shot blast, spinner hanger, shotblast cleaning system

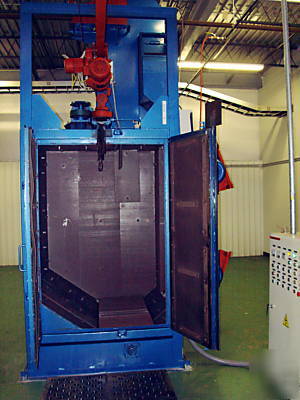

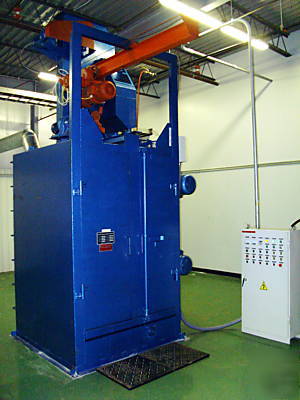

New Automatic Spinner Hanger Shot Blast MachineModel: Q376F
* Max size of workpiece: 42" diameter x 60" tall (Ideal size is 40" x 40")
* Footprint: 12' wide x 10' deep x 13-1/2' tall
* Spinner Hanger: 1 rated for 1,320 lbs.

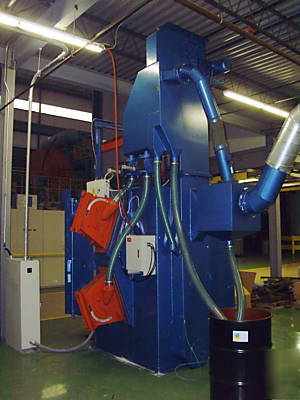

* Blastwheels: 2 - 10HP blastwheels with a diameter of 16.535" (420mm). This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, and made of 15-18% high chrome for long life, it is direct drive with a double disk design (each disk is over 3/4" thick), and straight blades.
* Electric Control System: operator control panel with an operating voltage of 460V, 3 phase, 60 Hz.
* Dust collector sold separately if needed.
