Opto pc control stepper motor controller & driver i

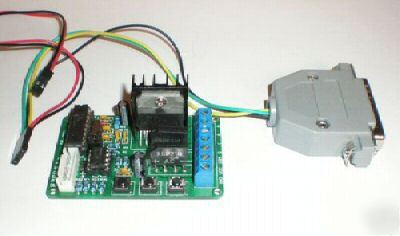

Opto PC Control Stepper Motor Controller & Driver I This item include: one Board I + one optoislation cable + one menu sheet.
1. Input signals are isolated by special OPTOISO parallel cable, ensure your computer safty.2. With this item, your stepper motor can be controlled by personal computer directly, no extra programmer or controller is needed.
1. Matching motors: 6 wires or 4 wires stepper motor, 2-phase, amperage<2A.
2. Operation volage: 5VDC for the board, 3-40VDC for stepper motor.
3. Software: MACH3, can be downloaded from free.
1. Jumper set: JP1 (off), JP2 (on)
COM: Empty (If it's 6 wires motor)
+5V (red), GND1 (black), CP (green), DIR (yellow), GND2 (black)
4. Power on both 5VDC and VCC.
MACH3 > Config > Ports and Pins > Motor Outputs: X Axis (Step Pin# =3, Dir Pin# =2)
