Fluke TI10 thermal imager ti 10 ir-fusion w/ hard case
Temperature measurement range (not calibrated below -10 C): -20 C to +250 C (-4 F to + 482 F); Accuracy: 5 C or 5 % (whichever is greater); Field of view: 23 x 17 ; Spatial resolution (IFOV): 2.5 mRad; Minimum focus distance: Thermal lens: 15 cm (6 in) Visible (visual) light lens: 46 cm (18 in); Focus: Manual; Image frequency: 9 Hz refresh rate; Detector type: 160X120 focal plane array, uncooled microbolometer; Infrared lens type: 20 mm F = 0.8 lens; Thermal sensitivity (NETD): 0.2 C at 30 C (200 mK); Infrared spectral band: 7.5 m to 14 m; Visual camera: 640 x 480 resolution; Storage medium: SD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each or 3000 basic (.bmp) IR images); File formats: Non-radiometric (.bmp) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp) files; Export file formats w/SmartView software: JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF, and EMF; General specifications: Operating: -10 C to 50 C (14 F to 122 F); Storage: -20 C to +50 C (-4 F to 122 F) without batteries; Relative humidity: 10 % to 90 % non-condensing; Display: 9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto); Controls and adjustments: User selectable temperature scale ( C/ F), Language selection, Time/Date set; Battery: Internal rechargeable battery pack (included); Battery life: Three to four hours continuous use (assumes 50 % brightness of LCD); Battery charge time using ac adapter/charger and dc car charger: Two hours for full charge; AC operation/charging: AC adapter/charger (110 Vac to 220 Vac, 50 Hz to 60 Hz). Charges battery while imager is operating. Universal ac mains adapters included; Power saving: Sleep mode activated after 5 minutes of inactivity, automatic power off after 20 minutes of inactivity; Supported languages: English, Italian, German, Spanish, French, Russian, Portuguese, Swedish, Turkish, Czech, Polish, Finnish, Simplified Chinese, Traditional Chinese, Korean, and Japanese
This thermal imager is the perfect tool to add to your problem solving arsenal. Built for tough work environments, this high-performance, fully radiometric infrared camera is ideal for troubleshooting electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment and others. IR-Fusion Technology: See things both ways infrared and visual (visible light) images fused together communicating critical information faster and easier traditional infrared images are no longer enough. IR-Fusion, a patent-pending technology that simultaneously captures a digital photo in addition to the infrared image and fuses it together taking the mystery out of IR image analysis. IR-Fusion is standard on Ti10 models

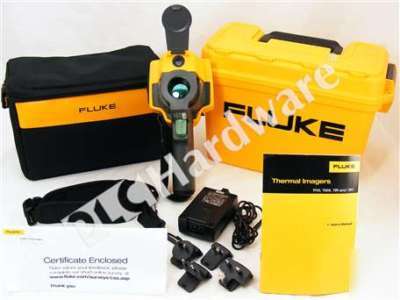

One Fluke Ti10 Thermal Imager with Hard Case in excellent working and cosmetic condition
