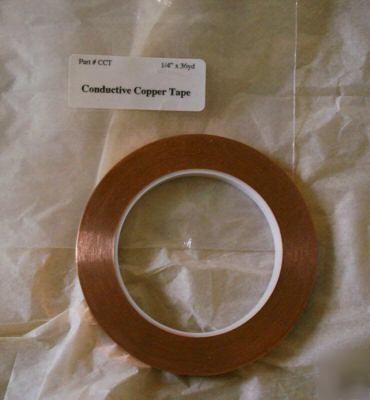

Conductive copper tape. adhesiveon one side
Conductive Adhesive Copper Tape is a thin copper foil with a conductive adhesive that allows conductivity to the substrate. As the tape is applied to your sample, conductive particles in the adhesive fill the gap between the backing and the specimen mount on which the sample is being applied.
Technical Information: Roll Size -1/4" width by 18 yards long Foil Thickness-1.4 mils Total Thickness-3 mils (.076mm) Adhesion oz/ln (N/10mm)-35 (3.81) Electrical Resistance through Adhesive ohm/in (ohm/cm)-.005 (.032) Continuous Long Term degrees Celsius-155 degrees Celsius Functional Days/Weeks degrees Celsius-175 degrees Celsius Part# CCT-3M, 1/4" x 18 yards
